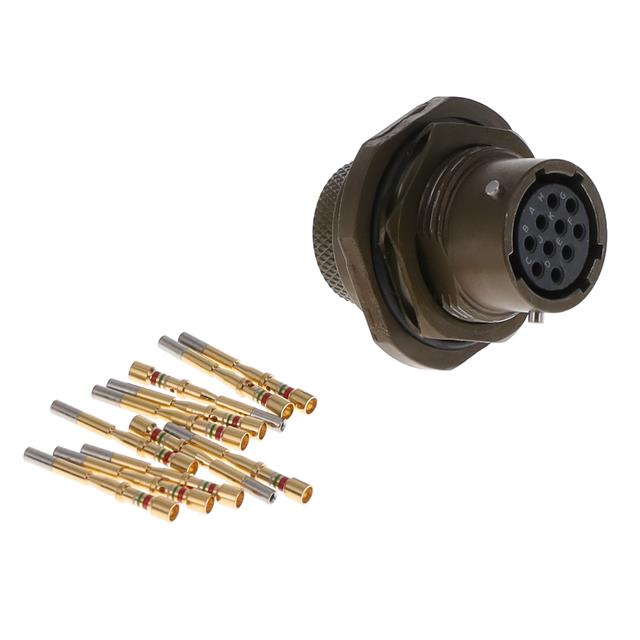

MS3124E1210SZ
ActiveITT Cannon, LLC
CIRCULAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3124E1210SZ
ActiveITT Cannon, LLC
CIRCULAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3124E1210SZ |
|---|---|
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Insert Material | Polychloroprene |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Z |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 VAC, 850 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.88 | |
Description
General part information
MS3124E12 Series
10 Position Circular Connector Receptacle, Female Sockets Crimp
