L1MC-RGU4080500MP0

Active

Lumileds

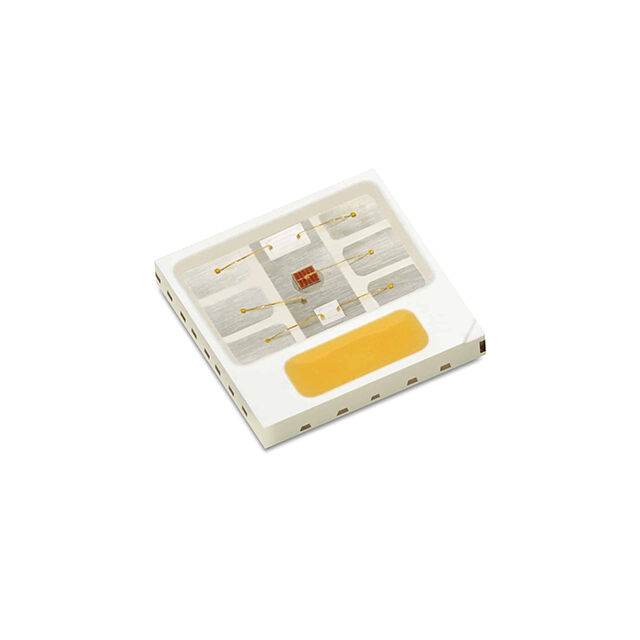

LUXEON MULTICOLOR MODULE 2.5W RED-GREEN-BLUE-4000K/80 MODULE 2.5W CCT 4000K CRI 80

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L1MC-RGU4080500MP0

Active

Lumileds

LUXEON MULTICOLOR MODULE 2.5W RED-GREEN-BLUE-4000K/80 MODULE 2.5W CCT 4000K CRI 80

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L1MC-RGU4080500MP0	L1MC Series

Color	Red, Green, Blue	Red, Green, Blue
Current - Max	250 mA, 240 mA	240 - 250 mA
Current - Max	-	60 mA
Current - Max	-	60 mA
Current - Max	-	60 mA
Current - Test	120 mA	20 - 120 mA
Height - Seated (Max)	-	0.073 in
Height - Seated (Max)	-	1.85 mm
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Lumens/Watt @ Current - Test [custom]	22 lm/W	22 - 36 lm/W
Lumens/Watt @ Current - Test [custom]	101 lm/W	101 - 165 lm/W
Lumens/Watt @ Current - Test [custom]	71 lm/W	71 - 74 lm/W
Luminous Flux @ Current/Temperature	Current/Temperature	Current/Temperature
Luminous Flux @ Current/Temperature	-	12 - 38 lm
Luminous Flux @ Current/Temperature [custom]	38 lm	9 - 38 lm
Luminous Flux @ Current/Temperature [custom]	18 lm	3 - 18 lm
Luminous Flux @ Current/Temperature [custom]	8 lm	2 - 8 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	2020 (5250 Metric)	6-PLCC, 6-SMD, No Lead, 2020 (5250 Metric)
Size / Dimension [x]	0.204 in	0.126 - 0.204 in
Size / Dimension [x]	5.18 mm	3.2 - 5.18 mm
Size / Dimension [y]	0.197 "	0.11 - 0.197 in
Size / Dimension [y]	5 mm	2.8 - 5 mm
Supplier Device Package	5052	5052
Viewing Angle	-	102 - 120 °
Viewing Angle [custom]	130 °	130 °
Viewing Angle [custom]	134 °	134 °
Viewing Angle [custom]	120 °	120 °
Voltage - Forward (Vf) (Typ) [custom]	3.15 V	2.73 - 3.15 V
Voltage - Forward (Vf) (Typ) [custom]	3 V	2.81 - 3 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V	2.03 - 2.1 V
Wavelength	528 nm, 463 nm, 622 nm	463 - 622 nm
Wavelength	-	622nm Red, 525nm Green, 470nm Blue

L1MC Series

RED-GREEN-BLUE MODULE 0.5W

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Viewing Angle	Color	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Height - Seated (Max)	Height - Seated (Max)	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Wavelength	Current - Test	Package / Case	Wavelength	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Current - Max	Viewing Angle [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Luminous Flux @ Current/Temperature
Lumileds L1MC-RGB0028000MP0	3.2 mm	0.126 in	0.11 in	2.8 mm	Surface Mount	36 lm/W	165 lm/W	74 lm/W	120 °	Blue, Green, Red	2 lm	3 lm	9 lm	2.03 V	2.81 V	2.73 V	0.073 in	1.85 mm	60 mA	60 mA	60 mA	470nm Blue, 525nm Green, 622nm Red	20 mA	6-PLCC
Lumileds L1MC-RGB0035000MP0	3.7 mm	0.146 in	0.138 in	3.5 mm	Surface Mount				102 °	Blue, Green, Red				2.1 V	3 V	2.8 V							20 mA	6-SMD, No Lead	472 nm, 528 nm, 622 nm
Lumileds L1MC-RGB4080500MP0	5.18 mm	0.204 in	0.197 "	5 mm	Surface Mount	33 lm/W	101 lm/W	71 lm/W		Blue, Green, Red				2.1 V	3 V	3.15 V							120 mA	2020 (5250 Metric)	473 nm, 528 nm, 622 nm	12 lm, 18 lm, 38 lm	0.7 mm	0.028 in	5052	240 mA, 250 mA	130 °	134 °	120 °
Lumileds L1MC-RGB5080500MP0	5.18 mm	0.204 in	0.197 "	5 mm	Surface Mount	33 lm/W	101 lm/W	71 lm/W		Blue, Green, Red				2.1 V	3 V	3.15 V							120 mA	2020 (5250 Metric)	473 nm, 528 nm, 622 nm	12 lm, 18 lm, 38 lm	0.7 mm	0.028 in	5052	240 mA, 250 mA	130 °	134 °	120 °
Lumileds L1MC-RGB2780500MP0	5.18 mm	0.204 in	0.197 "	5 mm	Surface Mount	33 lm/W	101 lm/W	71 lm/W		Blue, Green, Red				2.1 V	3 V	3.15 V							120 mA	2020 (5250 Metric)	473 nm, 528 nm, 622 nm	12 lm, 18 lm, 38 lm	0.7 mm	0.028 in	5052	240 mA, 250 mA	130 °	134 °	120 °
Lumileds L1MC-RGB6570500MP0	5.18 mm	0.204 in	0.197 "	5 mm	Surface Mount	33 lm/W	101 lm/W	71 lm/W		Blue, Green, Red				2.1 V	3 V	3.15 V							120 mA	2020 (5250 Metric)	473 nm, 528 nm, 622 nm	12 lm, 18 lm, 38 lm	0.7 mm	0.028 in	5052	240 mA, 250 mA	130 °	134 °	120 °
Lumileds L1MC-RGB2290500MP0	5.18 mm	0.204 in	0.197 "	5 mm	Surface Mount	33 lm/W	101 lm/W	71 lm/W		Blue, Green, Red				2.1 V	3 V	3.15 V							120 mA	2020 (5250 Metric)	473 nm, 528 nm, 622 nm	12 lm, 18 lm, 38 lm	0.7 mm	0.028 in	5052	240 mA, 250 mA	130 °	134 °	120 °
Lumileds L1MC-RGU4080500MP0	5.18 mm	0.204 in	0.197 "	5 mm	Surface Mount	22 lm/W	101 lm/W	71 lm/W		Blue, Green, Red	8 lm	18 lm	38 lm	2.1 V	3 V	3.15 V							120 mA	2020 (5250 Metric)	463 nm, 528 nm, 622 nm		0.7 mm	0.028 in	5052	240 mA, 250 mA	130 °	134 °	120 °	Current/Temperature
Lumileds L1MC-RGB3080500MP0	5.18 mm	0.204 in	0.197 "	5 mm	Surface Mount	33 lm/W	101 lm/W	71 lm/W		Blue, Green, Red				2.1 V	3 V	3.15 V							120 mA	2020 (5250 Metric)	473 nm, 528 nm, 622 nm	12 lm, 18 lm, 38 lm	0.7 mm	0.028 in	5052	240 mA, 250 mA	130 °	134 °	120 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.80
		10	$ 1.20
		100	$ 0.92
		500	$ 0.84
	Digi-Reel®	1	$ 1.80
		10	$ 1.20
		100	$ 0.92
		500	$ 0.84
	Tape & Reel (TR)	1000	$ 0.72
		2000	$ 0.68
		5000	$ 0.66
		10000	$ 0.65

Description

General part information

L1MC Series

LED Lighting Color LUXEON MultiColor Module 2.5W Red, Green, Blue (RGB) 622nm Red, 528nm Green, 463nm Blue 2020 (5250 Metric)
