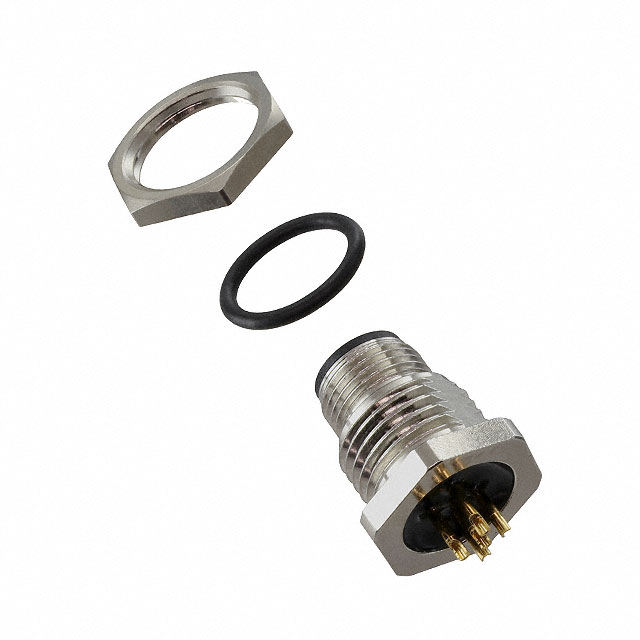

Specification	SD-MMA05-MMTPH-S70-000

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating	5 A
Fastening Type	Threaded
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Plastic
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Solder Cup

SD-MMA Series

Part	Contact Finish - Mating	Mounting Feature	Termination	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Mounting Type	Contact Material	Shell Material	Shielding	Insert Material	Connector Type	Orientation	Shell Finish	Operating Temperature (Min)	Operating Temperature (Max)	Color	Number of Positions	Contact Finish Thickness - Mating	Primary Material	Current Rating	Shell Size - Insert
Adam Tech SD-MMA05-MMTPH-S70-000	Gold	Bulkhead Front Side Nut	Solder Cup	Dust Tight Waterproof	IP67	Threaded	Panel Mount	Brass	Brass	Unshielded	Plastic	Male Pins Receptacle	Keyed	Nickel	-40 °C	85 °C	Silver	5	Flash	Metal	5 A	M12-5
Adam Tech SD-MMA04-MMTPH-S70-000	Gold	Bulkhead Front Side Nut	Solder Cup	Dust Tight Waterproof	IP67	Threaded	Panel Mount	Brass	Brass	Unshielded	Plastic	Male Pins Receptacle	Keyed	Nickel	-40 °C	85 °C	Silver	4	Flash	Metal	5 A	M12-4
