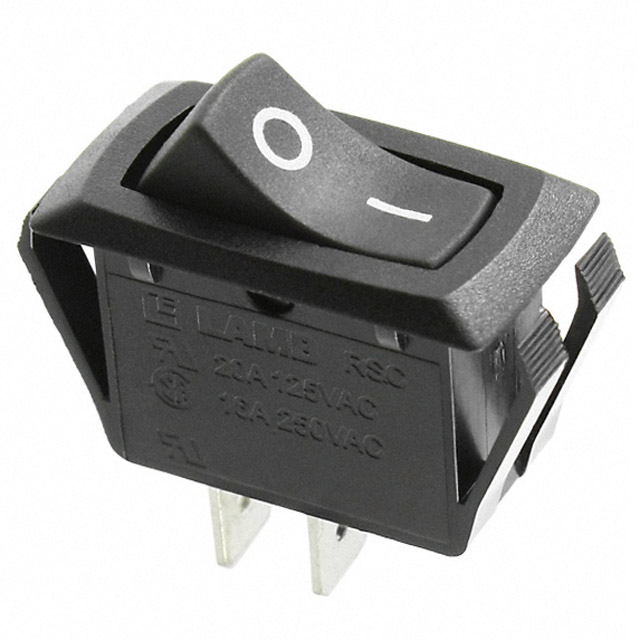

RSC141D1121

Active

E-Switch

SPST 125V ROCKER SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

RSC141D1121

Active

E-Switch

SPST 125V ROCKER SWITCHES ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RSC141D1121

Actuator Marking	O -
Actuator Type	Concave (Curved)
Approval Agency	CSA, UL
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	28.6 mm
Panel Cutout Dimensions [y]	13.9 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

RSC141D Series

Part	Switch Function	Features	Current Rating (Amps)	Voltage Rating - AC	Termination Style	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Actuator Marking	Actuator Type	Circuit	Approval Agency	Illumination Type, Color	Illumination Voltage (Nominal)
E-Switch RSC141D1A00	On-Off	Two-Tone Rocker	20 A	125 V	Quick Connect - 0.250" (6.3mm)	10000 Cycles	28.6 mm	13.9 mm	Panel Mount Snap-In	-20 C	105 ░C	Black Red	No Marking	Concave (Curved)	SPST	CSA UL
E-Switch RSC141D1100	On-Off		20 A	125 V	Quick Connect - 0.250" (6.3mm)	10000 Cycles	28.6 mm	13.9 mm	Panel Mount Snap-In	-20 C	105 ░C	Black	No Marking	Concave (Curved)	SPST	CSA UL
E-Switch RSC141D1000-124	On-Off		20 A	125 V	Quick Connect - 0.250" (6.3mm)	10000 Cycles	28.6 mm	13.9 mm	Panel Mount Snap-In	-20 C	105 ░C	Amber	No Marking	Concave (Curved) - Illuminated	SPST	CSA UL	Amber Incandescent	12 VDC
E-Switch RSC141D1121	On-Off		20 A	125 V	Quick Connect - 0.250" (6.3mm)	10000 Cycles	28.6 mm	13.9 mm	Panel Mount Snap-In	-20 C	105 ░C	Black	O -	Concave (Curved)	SPST	CSA UL
E-Switch RSC141D1A81	On-Off	Two-Tone Rocker	20 A	125 V	Quick Connect - 0.250" (6.3mm)	10000 Cycles	28.6 mm	13.9 mm	Panel Mount Snap-In	-20 C	105 ░C	Black Red	O -	Concave (Curved)	SPST	CSA UL
E-Switch RSC141D1000-116	On-Off		20 A	125 V	Quick Connect - 0.250" (6.3mm)	10000 Cycles	28.6 mm	13.9 mm	Panel Mount Snap-In	-20 C	105 ░C	Red	No Marking	Concave (Curved) - Illuminated	SPST	CSA UL	Neon Red	125 VAC
E-Switch RSC141D1A83	On-Off	Two-Tone Rocker	20 A	125 V	Quick Connect - 0.250" (6.3mm)	10000 Cycles	28.6 mm	13.9 mm	Panel Mount Snap-In	-20 C	105 ░C	Black Red	ON OFF Vertical	Concave (Curved)	SPST	CSA UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.49
		10	$ 1.34
		250	$ 1.10
		1000	$ 0.99
LCSC	Piece	1	$ 1.76
		250	$ 0.70
		500	$ 0.68

Description

General part information

RSC141D Series

Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
