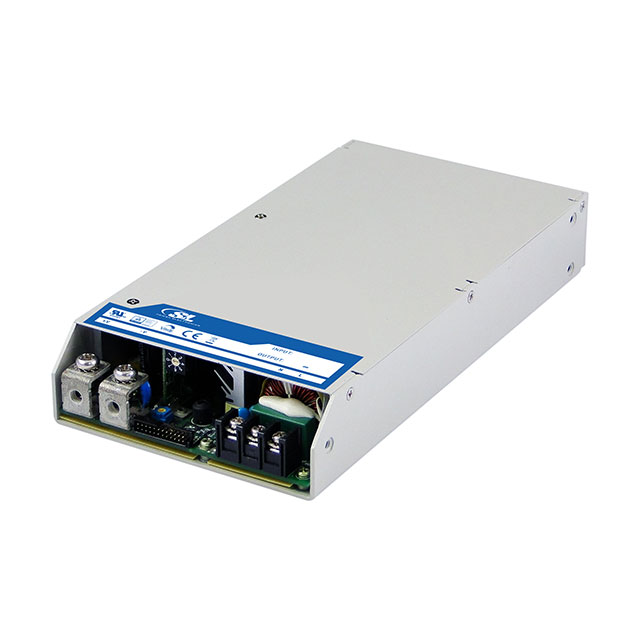

TF800A60K

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 60V 804W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 60V 804W

Technical Specifications

Parameters and characteristics for this part

Specification	TF800A60K

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	13.4 A
Efficiency	93 %
Features	Remote On/Off, PFC, Load Sharing, DC Input Capable, Remote Sense, Standby Output, Adjustable Output, I2C Interface
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	804 W
Size / Dimension [x]	248.9 mm
Size / Dimension [x]	9.8 "
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	40.6 mm
Size / Dimension [z]	1.6 "
Type	Enclosed
Voltage - Input [Max]	240 VAC, 370 VDC
Voltage - Input [Min]	100 VAC, 127 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	60 V

AC/DC CONVERTER 60V 804W

Part	Number of Outputs	Features	Voltage - Isolation	Current - Output 1	Applications	Voltage - Output 1	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Approval Agency	Type
SL POWER / Advanced Energy TF800A60K	1	Adjustable Output, DC Input Capable, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output	3000 V	13.4 A	ITE (Commercial)	60 V	93 %	248.9 mm	40.6 mm	127 mm	9.8 "	5 "	1.6 "	240 VAC, 370 VDC	100 VAC, 127 VDC	804 W	60 °C	-25 °C	Chassis Mount	CE, cURus, TUV	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 60V 100 ~ 240 VAC, 127 ~ 370 VDC Input
