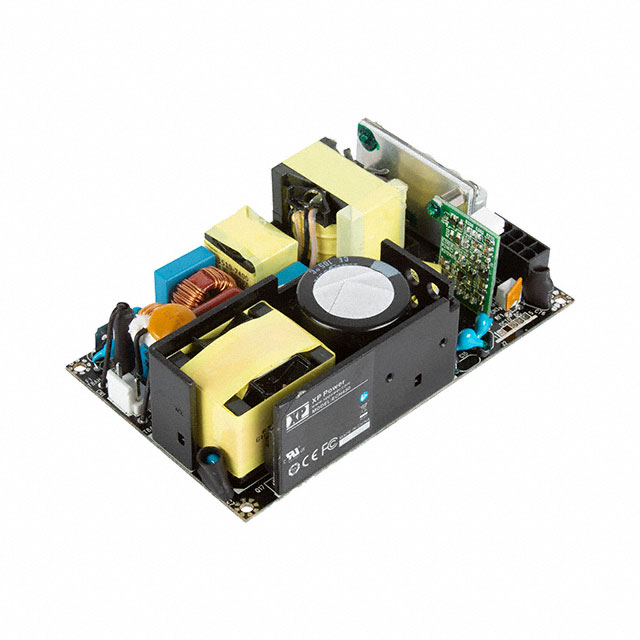

ECH450PS15

Active

XP POWER

AC/DC CONVERTER 15V 249W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECH450PS15

Active

XP POWER

AC/DC CONVERTER 15V 249W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECH450PS15

Applications	ITE (Commercial), Medical
Approval Agency	CB, CE, TUV, UL
Current - Output 1	16.6 A
Efficiency	95 %
Features	Remote On/Off, Universal Input, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	249 W, 450 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	32 mm
Size / Dimension [z]	1.26 in
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

ECH450 Series

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Type	Number of Outputs	Mounting Type	Standard Number	Voltage - Isolation	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Power (Watts)	Approval Agency	Efficiency	Voltage - Output 1	Features	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)
XP POWER ECH450PS15-EF	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm	Enclosed	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	16.6 A	249 W 450 W	CB CE TUV UL	95 %	15 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC
XP POWER ECH450PS54	127 mm			76.2 mm			Open Frame	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	4.63 A	250 W	CB CE TUV UL	95 %	54 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC	5 in	3 "	32 mm	1.26 in	448 W
XP POWER ECH450PS12-EF	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm	Enclosed	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	20.8 A	250 W 450 W	CB CE TUV UL	93 %	12 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC
XP POWER ECH450PS48	127 mm			76.2 mm			Open Frame	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	5.2 A	250 W	CB CE TUV UL	95 %	48 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC	5 in	3 "	32 mm	1.26 in	451 W
XP POWER ECH450PS36	127 mm			76.2 mm			Open Frame	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	6.9 A		CB CE TUV UL	95 %	36 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC	5 in	3 "	32 mm	1.26 in
XP POWER ECH450PS15	127 mm			76.2 mm			Open Frame	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	16.6 A	249 W 450 W	CB CE TUV UL	95 %	15 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC	5 in	3 "	32 mm	1.26 in
XP POWER ECH450PS19-EF	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm	Enclosed	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	13 A	247 W	CB CE TUV UL	95 %	19 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC					450 W
XP POWER ECH450PS36-EF	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm	Enclosed	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	6.9 A		CB CE TUV UL	95 %	36 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC
XP POWER ECH450PS48-EF	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm	Enclosed	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	5.2 A	250 W	CB CE TUV UL	95 %	48 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC					451 W
XP POWER ECH450PS54-EF	5.83 in	148.1 mm	1.6 in	80 mm	3.15 in	40.6 mm	Enclosed	1	Chassis Mount	62368-1	4000 V	ITE (Commercial) Medical	-20 °C	70 °C	4.63 A	250 W	CB CE TUV UL	95 %	54 V	Remote On/Off Standby Output Universal Input	90 VAC	264 VAC					448 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 152.90
		5	$ 148.31
		10	$ 143.73
		25	$ 137.61
		100	$ 128.44

Description

General part information

ECH450 Series

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
