A161208LP

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 16"L X 12"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 16"L X 12"W

Technical Specifications

Parameters and characteristics for this part

JUNCTION BOX STEEL 16"L X 12"W

Part	Weight	Weight	Ratings	Container Type	Thickness	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Color	Area (L x W)	Area (L x W)	Design	Features
Hoffman Enclosures, Inc. A161208LP	9.5 kg	21 lbs	IP65, NEMA 12, NEMA 13, UL-508A	Junction Box	16 Gauge	406 mm	15.984 in	12.008 in	305 mm	Metal, Steel	Gray	1239 cm²	192 in²	Hinged Door, Lid	Sealing Gasket, Wall Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

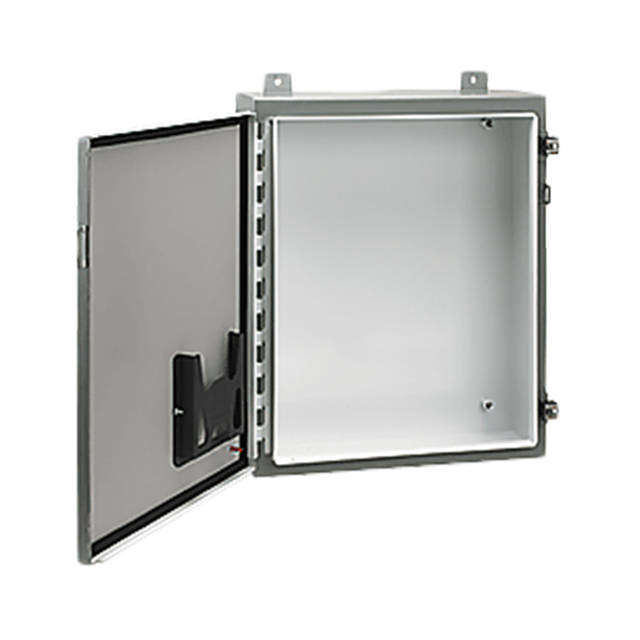

Junction Box Metal, Steel Gray Hinged Door, Lid 15.984" L x 12.008" W (406.00mm x 305.00mm) X 7.992" (203.00mm)

Technical documentation and resources
