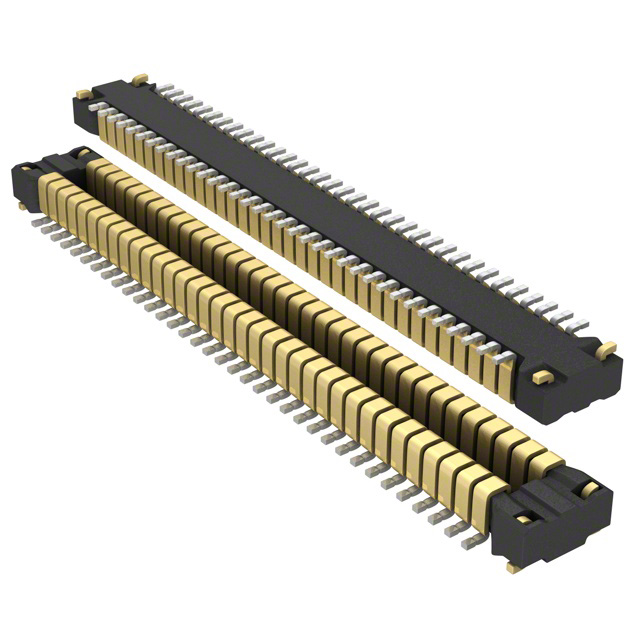

AXT670124

Active

Panasonic Electric Works

CONN HDR 70POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 70POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT670124

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Features	Connector Type	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions	Height Above Board [z]	Height Above Board [z]	Number of Rows	Mated Stacking Heights
Panasonic Electric Works AXT670124A	Surface Mount	Solder Retention	Header Center Strip Contacts	Gold	0.016 in	0.4 mm	70	0.84 mm	0.033 "	2	1 mm
Panasonic Electric Works AXT670124	Surface Mount	Solder Retention	Header Center Strip Contacts	Gold	0.016 in	0.4 mm	70	0.84 mm	0.033 "	2	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

70 Position Connector Header, Center Strip Contacts Surface Mount Gold
