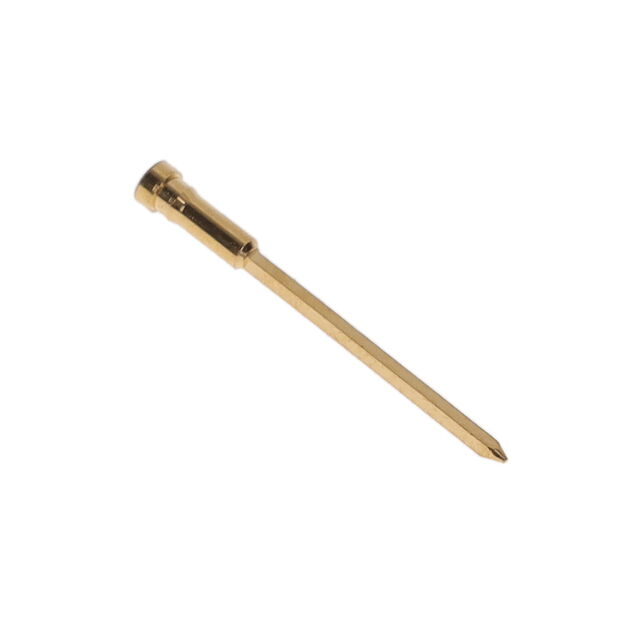

1010-3-05-21-00-00-01-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN SQUARE 0.025 GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010-3-05-21-00-00-01-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 16.84 mm |
| Length - Above Flange [custom] | 0.663 in |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange | 0.64 mm |
| Pin Size - Above Flange | 0.025 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Wire Wrap, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 10 | $ 1.20 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.13 | |||
| 100 | $ 1.08 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.88 | |||
| 1000 | $ 0.79 | |||
| 3000 | $ 0.71 | |||
Description
General part information
1010-3 Series
PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Square
