438-035-540-122

Active

EDAC Inc.

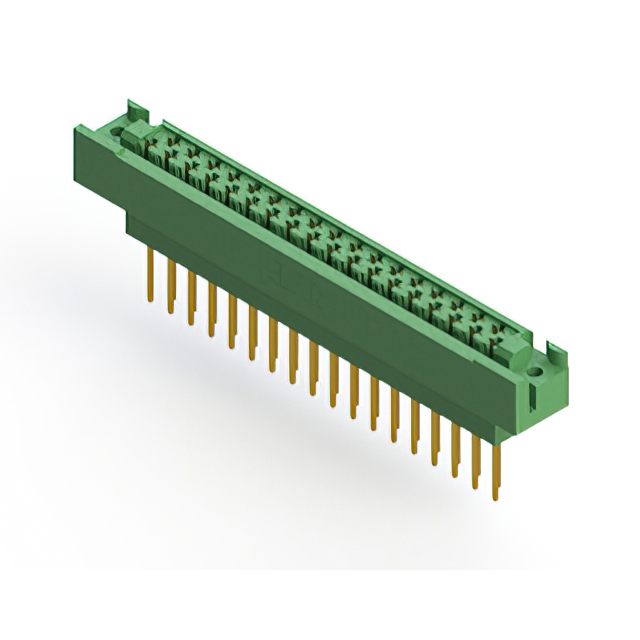

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

438-035-540-122

Active

EDAC Inc.

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	438-035-540-122

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	35
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Wire Wrap
Termination Rows	2

438-035 Series

Part	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Card Type	Color	Termination Rows	Card Thickness	Card Thickness	Flange Feature	Flange Feature	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Pitch [x]	Pitch [x]	Contact Finish	Gender	Termination	Material Flammability Rating	Note
EDAC Inc. 438-035-541-122	35	2	10 Áin	0.25 Ám	Panel Mount Through Hole	Non Specified - Dual Edge	Green	2	0.093 in	2.36 mm	3.25 mm	0.128 in	Copper Alloy	125 °C	-65 ░C	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	Gold	Female	Wire Wrap
EDAC Inc. 438-035-540-122	35	2	10 Áin	0.25 Ám	Panel Mount Through Hole	Non Specified - Dual Edge	Green	2	0.093 in	2.36 mm	3.25 mm	0.128 in	Copper Alloy	125 °C	-65 ░C	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	Gold	Female	Wire Wrap
EDAC Inc. 438-035-500-122	35	2	10 Áin	0.25 Ám	Panel Mount Through Hole	Non Specified - Dual Edge	Green	2	0.093 in	2.36 mm	3.25 mm	0.128 in	Copper Alloy	125 °C	-65 ░C	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	Gold	Female	Solder Eyelet(s)
EDAC Inc. 438-035-000-122	35					Non Specified - Dual Edge	Green		0.093 in	2.36 mm	3.25 mm	0.128 in		125 °C	-65 ░C	Diallyl Phthalate (DAP)	0.2 in	5.08 mm				UL94 V-0	Contacts Not Included
EDAC Inc. 438-035-000-112	35					Non Specified - Dual Edge	Green		0.062 in	1.57 mm	3.25 mm	0.128 in		125 °C	-65 ░C	Diallyl Phthalate (DAP)	0.2 in	5.08 mm				UL94 V-0	Contacts Not Included
EDAC Inc. 438-035-500-112	35	2	10 Áin	0.25 Ám	Panel Mount Through Hole	Non Specified - Dual Edge	Green	2	0.062 in	1.57 mm	3.25 mm	0.128 in	Copper Alloy	125 °C	-65 ░C	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	Gold	Female	Solder Eyelet(s)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 27.90
Newark	Each	1	$ 32.39
		100	$ 25.56
		250	$ 22.95
		500	$ 21.01
		1000	$ 16.89

Description

General part information

438-035 Series

35 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
