General part information

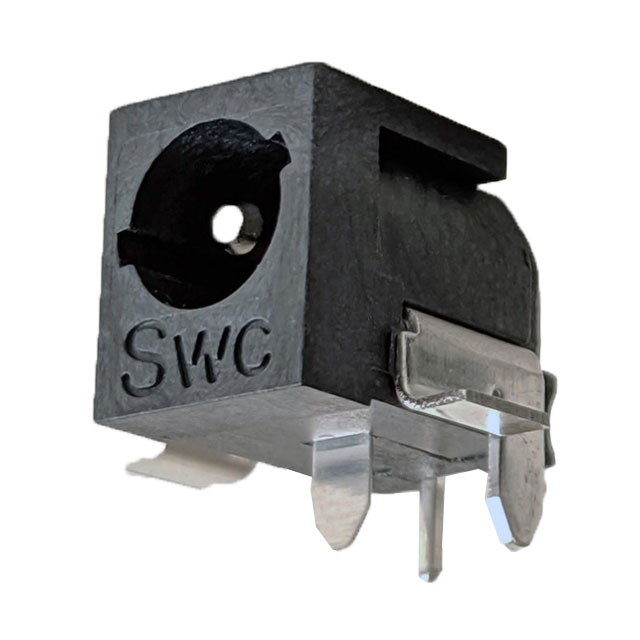

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Surface Mount, Right Angle; Through Hole
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | RASH712BKZ | RASH71 Series |
|---|---|---|
| Actual Diameter [diameter] | 2.5 mm, 6.3 mm | 2.5 - 6.3 mm |
| Actual Diameter [diameter] | 0.098 in, 0.248 in | 0.098 - 0.248 in |
| Body Color | Black | Black |
| Body Material | Copper Alloy | Copper Alloy |
| Connector Type | Jack | Jack |
| Contact Material | Copper Alloy | Brass, Copper Alloy |
| Contact Material - Plating [custom] | Silver | Silver |
| Current Rating (Amps) | 5 A | 5 A |
| Features | - | Board Guide |
| Gender | Male | Male |
| Housing Material | Thermoplastic | Thermoplastic |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm | 2.5 - 5.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " | 0.098 - 0.217 " |
| Insulation Color | Black | Black |
| Internal Switch(s) | Single Switch, Normally Closed | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Surface Mount, Right Angle | Through Hole, Right Angle, Through Hole, Surface Mount, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors | 2 - 3 Conductors |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage - Rated | 24 VDC | 24 VDC |
CONN PWR JACK 2.5X5.5MM SOLDER
| Part | Contact Material | Termination | Actual Diameter [diameter] | Actual Diameter [diameter] | Body Color | Number of Positions/Contacts | Features | Housing Material | Shielding | Internal Switch(s) | Gender | Mounting Type | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Connector Type | Contact Material - Plating [custom] | Current Rating (Amps) | Body Material | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. RASH712X | Brass | Solder | 2.5 mm, 6.3 mm | 0.098 in, 0.248 in | Black | 2 Conductors, 3 Conductors | Board Guide | Thermoplastic | Unshielded | Normally Closed, Single Switch | Male | Through Hole, Right Angle | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Jack | Silver | 5 A | |||||
Switchcraft Inc. RASH712BKZ | Copper Alloy | Solder | 2.5 mm, 6.3 mm | 0.098 in, 0.248 in | Black | 2 Conductors, 3 Conductors | Thermoplastic | Unshielded | Normally Closed, Single Switch | Male | Surface Mount, Right Angle, Through Hole | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Jack | Silver | 5 A | Copper Alloy | Black | 65 °C | -30 ░C | 24 VDC | |
Switchcraft Inc. RASH712BK | Copper Alloy | Solder | 2.5 mm, 6.3 mm | 0.098 in, 0.248 in | Black | 2 Conductors, 3 Conductors | Board Guide | Thermoplastic | Unshielded | Normally Closed, Single Switch | Male | Surface Mount, Right Angle, Through Hole | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Jack | Silver | 5 A | |||||
Switchcraft Inc. RASH712PX | Copper Alloy | Solder | 2.5 mm, 6.3 mm | 0.098 in, 0.248 in | Black | 2 Conductors, 3 Conductors | Board Guide | Thermoplastic | Unshielded | Normally Closed, Single Switch | Male | Surface Mount, Right Angle, Through Hole | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | Jack | Silver | 5 A |
