RASH712X

Active

Switchcraft Inc.

CONN PWR JACK 2.5X5.5MM SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PWR JACK 2.5X5.5MM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RASH712X	RASH71 Series

Actual Diameter [diameter]	2.5 mm, 6.3 mm	2.5 - 6.3 mm
Actual Diameter [diameter]	0.098 in, 0.248 in	0.098 - 0.248 in
Body Color	Black	Black
Body Material	-	Copper Alloy
Connector Type	Jack	Jack
Contact Material	Brass	Brass, Copper Alloy
Contact Material - Plating [custom]	Silver	Silver
Current Rating (Amps)	5 A	5 A
Features	Board Guide	Board Guide
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "	0.098 - 0.217 "
Insulation Color	-	Black
Internal Switch(s)	Single Switch, Normally Closed	Single Switch, Normally Closed
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole, Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Operating Temperature	-	65 °C
Operating Temperature	-	-30 ░C
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage - Rated	-	24 VDC

CONN PWR JACK 2.5X5.5MM SOLDER

Part	Contact Material	Termination	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Color	Number of Positions/Contacts	Features	Housing Material	Shielding	Internal Switch(s)	Gender	Mounting Type	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Connector Type	Contact Material - Plating [custom]	Current Rating (Amps)	Body Material	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated
Switchcraft Inc. RASH712X	Brass	Solder	2.5 mm, 6.3 mm	0.098 in, 0.248 in	Black	2 Conductors, 3 Conductors	Board Guide	Thermoplastic	Unshielded	Normally Closed, Single Switch	Male	Through Hole, Right Angle	2.5 mm, 5.5 mm	0.098 ", 0.217 "	Jack	Silver	5 A
Switchcraft Inc. RASH712BKZ	Copper Alloy	Solder	2.5 mm, 6.3 mm	0.098 in, 0.248 in	Black	2 Conductors, 3 Conductors		Thermoplastic	Unshielded	Normally Closed, Single Switch	Male	Surface Mount, Right Angle, Through Hole	2.5 mm, 5.5 mm	0.098 ", 0.217 "	Jack	Silver	5 A	Copper Alloy	Black	65 °C	-30 ░C	24 VDC
Switchcraft Inc. RASH712BK	Copper Alloy	Solder	2.5 mm, 6.3 mm	0.098 in, 0.248 in	Black	2 Conductors, 3 Conductors	Board Guide	Thermoplastic	Unshielded	Normally Closed, Single Switch	Male	Surface Mount, Right Angle, Through Hole	2.5 mm, 5.5 mm	0.098 ", 0.217 "	Jack	Silver	5 A
Switchcraft Inc. RASH712PX	Copper Alloy	Solder	2.5 mm, 6.3 mm	0.098 in, 0.248 in	Black	2 Conductors, 3 Conductors	Board Guide	Thermoplastic	Unshielded	Normally Closed, Single Switch	Male	Surface Mount, Right Angle, Through Hole	2.5 mm, 5.5 mm	0.098 ", 0.217 "	Jack	Silver	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

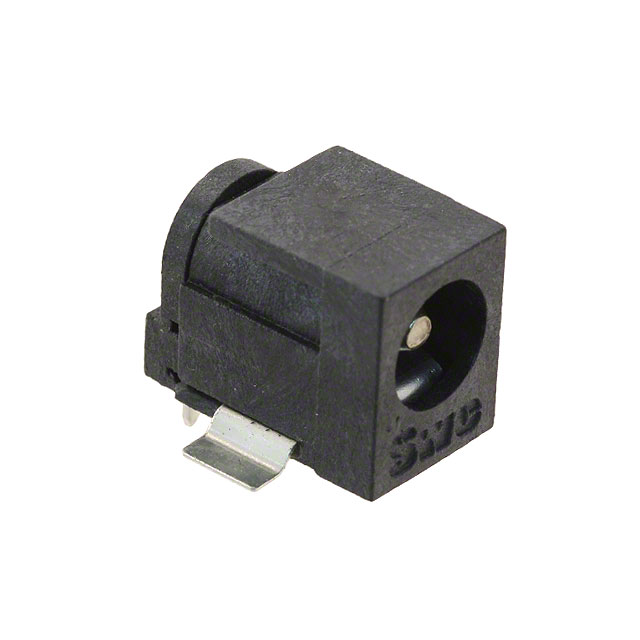

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
