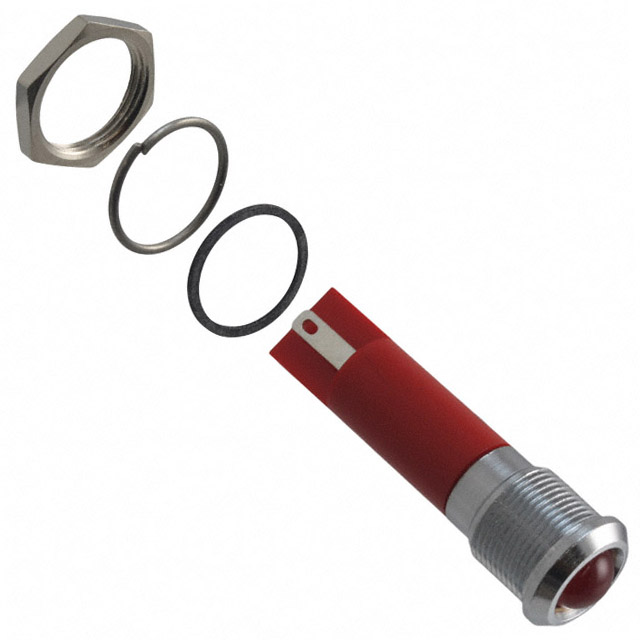

Q12P1CXXR12E
ActiveAPEM
LED PANEL MOUNT INDICATOR, PROMINENT BEZEL, RED, 12 VDC, 12 MM, 20 MA, 100 MCD, IP67
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q12P1CXXR12E
ActiveAPEM
LED PANEL MOUNT INDICATOR, PROMINENT BEZEL, RED, 12 VDC, 12 MM, 20 MA, 100 MCD, IP67
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q12P1CXXR12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 350 mcd |
| Panel Cutout Dimensions | 0.47 in |
| Panel Cutout Dimensions | 11.94 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q12P1CXXR Series
LED Panel Indicator Red Diffused 60° 12V 20mA Quick Connect - 0.110" (2.8mm)
