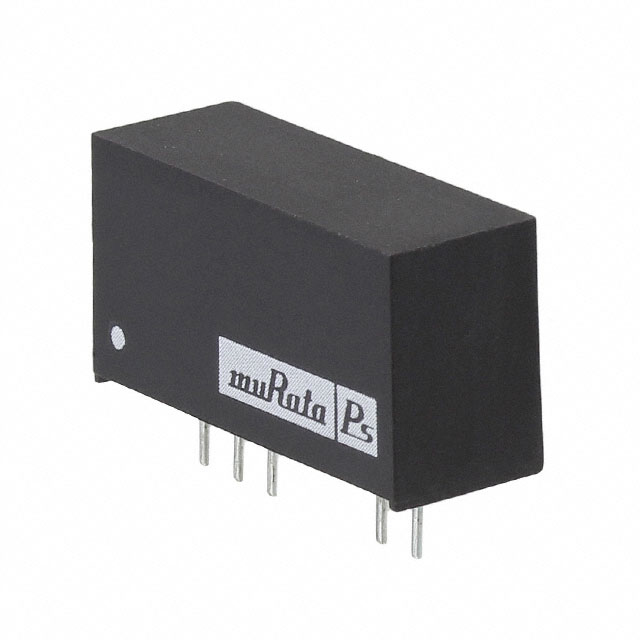

MEV1D2412SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MEV1D2412SC	MEV1D24 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	42 mA	42 mA
Current - Output (Max) [Max]	42 mA	42 mA
Efficiency	88 %	86 - 88 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 5 Leads	7-SIP Module, 5 Leads, 14-DIP Module, 6 Leads
Size / Dimension [x]	19.7 mm	19.7 mm
Size / Dimension [x]	0.77 in	0.77 - 0.78 in
Size / Dimension [y]	6.2 mm	6.2 - 10 mm
Size / Dimension [y]	0.24 "	0.24 - 0.39 "
Size / Dimension [z]	0.4 "	0.28 - 0.4 "
Size / Dimension [z]	10.2 mm	7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	26.4 V	26.4 V
Voltage - Input (Min) [Min]	21.6 V	21.6 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	12 V	9 - 12 V
Voltage - Output 2	-12 V	-12 - -9 V

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 1:1, 1 W, 2 OUTPUT, 9 V, 56 MA

Part	Voltage - Output 2	Package / Case	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. MEV1D2409SC	-9 V	7-SIP Module, 5 Leads	ITE (Commercial)	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	3000 V	Through Hole	26.4 V	9 V	85 °C	-40 °C	2	86 %	21.6 V	Isolated Module
Murata Power Solutions Inc. MEV1D2412SC	-12 V	7-SIP Module, 5 Leads	ITE (Commercial)	19.7 mm	0.4 "	6.2 mm	0.77 in	0.24 "	10.2 mm	3000 V	Through Hole	26.4 V	12 V	85 °C	-40 °C	2	88 %	21.6 V	Isolated Module	42 mA	42 mA
Murata Power Solutions Inc. MEV1D2409DC	-9 V	14-DIP Module, 6 Leads	ITE (Commercial)	19.7 mm	0.28 "	10 mm	0.78 "	0.39 "	7 mm	3000 V	Through Hole	26.4 V	9 V	85 °C	-40 °C	2	86 %	21.6 V	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 21.6V - 26.4V Input
