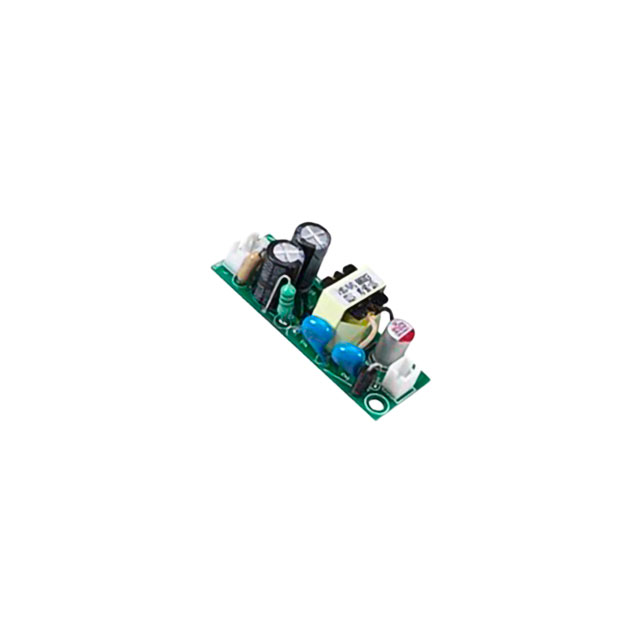

CFM06S090-T

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 9V 6W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 9V 6W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFM06S090-T	CFM06 Series

Applications	Household Appliances, ITE (Commercial)	Household Appliances, ITE (Commercial)
Approval Agency	D-Mark, cURus, CE, FCC	D-Mark, cURus, CE, FCC
Current - Output 1	670 mA	1.2 - 670 mA
Efficiency	81 %	78 - 83 %
Features	Universal Input	Universal Input
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	80 ¯C	80 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	6 W	6 W
Size / Dimension [x]	1.95 "	1.95 "
Size / Dimension [x]	49.5 mm	49.5 mm
Size / Dimension [y]	18.5 mm	18.5 mm
Size / Dimension [y]	0.73 "	0.73 "
Size / Dimension [z]	15 mm	15 mm
Size / Dimension [z]	0.59 in	0.59 in
Type	Open Frame	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC	264 - 370 VDC
Voltage - Input [Min]	90 VAC, 120 VDC	90 - 120 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	9 V	5 - 24 V

AC/DC CONVERTER 24V 6W

Part	Approval Agency	Number of Outputs	Features	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Voltage - Output 1	Efficiency	Current - Output 1	Voltage - Isolation
Cincon Electronics Co. LTD CFM06S240-T	CE, cURus, D-Mark, FCC	1	Universal Input	264 VAC, 370 VDC	90 VAC, 120 VDC	6 W	-40 °C	80 ¯C	Household Appliances, ITE (Commercial)	Chassis Mount	15 mm	1.95 "	18.5 mm	0.73 "	0.59 in	49.5 mm	Open Frame	24 V	83 %	250 mA	3000 V
Cincon Electronics Co. LTD CFM06S120-T	CE, cURus, D-Mark, FCC	1	Universal Input	264 VAC, 370 VDC	90 VAC, 120 VDC	6 W	-40 °C	80 ¯C	Household Appliances, ITE (Commercial)	Chassis Mount	15 mm	1.95 "	18.5 mm	0.73 "	0.59 in	49.5 mm	Open Frame	12 V	81 %	500 mA	3000 V
Cincon Electronics Co. LTD CFM06S090-T	CE, cURus, D-Mark, FCC	1	Universal Input	264 VAC, 370 VDC	90 VAC, 120 VDC	6 W	-40 °C	80 ¯C	Household Appliances, ITE (Commercial)	Chassis Mount	15 mm	1.95 "	18.5 mm	0.73 "	0.59 in	49.5 mm	Open Frame	9 V	81 %	670 mA	3000 V
Cincon Electronics Co. LTD CFM06S050-T	CE, cURus, D-Mark, FCC	1	Universal Input	264 VAC, 370 VDC	90 VAC, 120 VDC	6 W	-40 °C	80 ¯C	Household Appliances, ITE (Commercial)	Chassis Mount	15 mm	1.95 "	18.5 mm	0.73 "	0.59 in	49.5 mm	Open Frame	5 V	78 %	1.2 A	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 7.58

General part information

Open Frame AC DC Converters 1 Output 9V 90 ~ 264 VAC, 120 ~ 370 VDC Input
