031-4237

Active

AMPHENOL RF

CONN BNC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-4237	031-42 Series

Body Finish	Silver	Silver
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold, Silver
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder Eyelet	Solder Eyelet, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher, 1 Clamp, 1 Contact, 1 Washer, 2 Gaskets, 1 Braid Clamp
Ingress Protection	-	Weatherproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder, Clamp
Voltage Rating	500 V	500 V

CONN BNC RCPT STR 50 OHM SOLDER

Part	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Mounting Feature	Includes	Connector Style	Body Material	Center Contact Plating	Mating Cycles	Dielectric Material	Fastening Type	Insertion Loss	Center Contact Material	Contact Termination	Housing Color	Body Finish	Number of Ports	Shield Termination	Connector Type	Voltage Rating	Ingress Protection
AMPHENOL RF 031-4237	50 Ohms	-65 ░C	165 °C	4 GHz	Bulkhead - Front Side Nut	1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut	BNC	Brass	Gold	500	Polytetrafluoroethylene (PTFE)	Bayonet Lock	0.2 dB	Beryllium Copper	Solder Eyelet	Silver	Silver	1	Solder	Female Socket, Jack	500 V
AMPHENOL RF 031-4220	50 Ohms	-65 ░C	165 °C	4 GHz	Bulkhead - Front Side Nut	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Lockwasher, 1 Nut, 1 Washer, 2 Gaskets	BNC	Brass	Silver	500	Polytetrafluoroethylene (PTFE)	Bayonet Lock	0.2 dB	Beryllium Copper	Solder	Silver	Silver	1	Clamp	Female Socket, Jack	500 V	Weatherproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

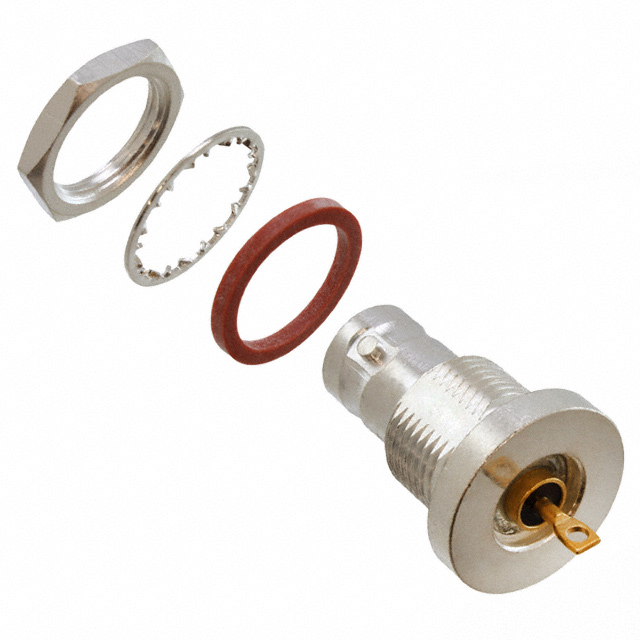

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Eyelet
