S6SBP202A1FVA1001

Active

Infineon Technologies

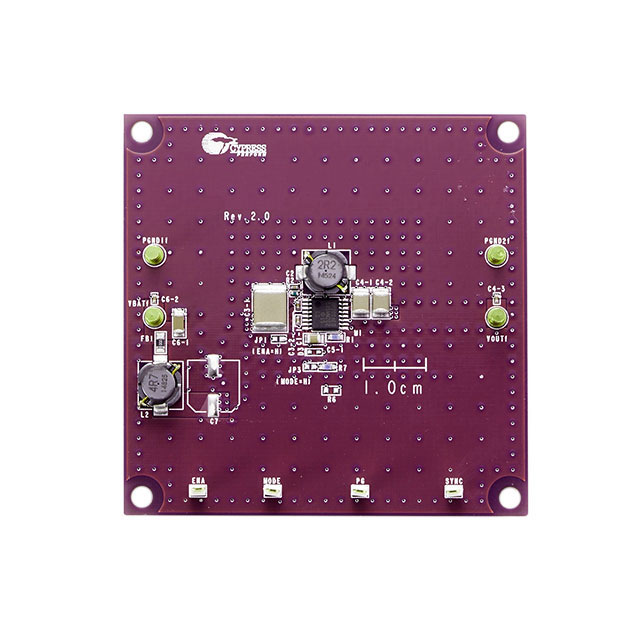

S6BP202A DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP 5V OUTPUT EVALUATION KIT

Search across all available documentation for this part.

Active

Infineon Technologies

S6BP202A DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP 5V OUTPUT EVALUATION KIT

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Utilized IC / Part	Current - Output	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Main Purpose	Regulator Topology	Outputs and Type	Outputs and Type
Infineon Technologies S6SBP202A1FVA1001	Board(s)	S6BP202A	2.4 A	Fully Populated	2.5 V	42 V	5 V	DC/DC Step Up or Down	Buck-Boost	Non-Isolated	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 8.79
Digikey	Box	1	$ 45.94

General part information

S6BP202A - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available
