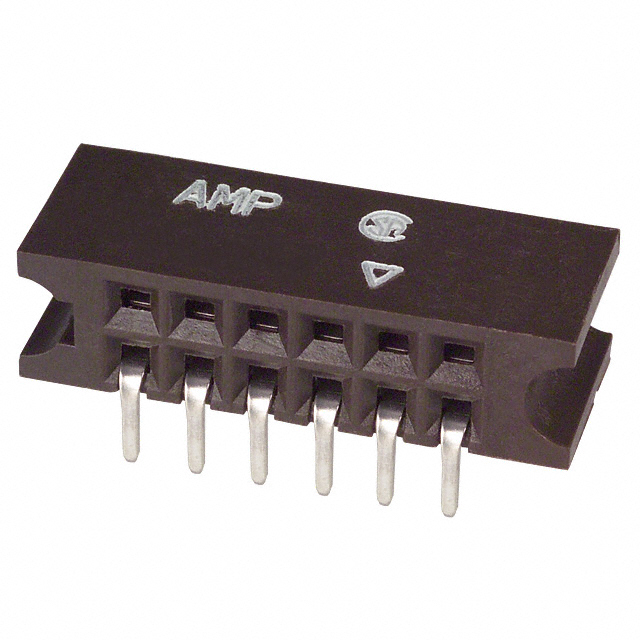

HEADERS & WIRE HOUSINGS REC 2X06P HRZ T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ENG_CD_532955_U.pdf +3

5-532955-1

Active

TE Connectivity Raychem Cable Protection

HEADERS & WIRE HOUSINGS REC 2X06P HRZ T/H

Deep-Dive with AI

DocumentsDatasheet ENG_CD_532955_U.pdf +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-532955-1

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Guide Pin Ears
Insulation Color	Black
Insulation Height	6.05 mm
Insulation Height	0.238 in
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

ampmodu-mod-iv Series

Headers & Wire Housings 08 AMP MODU MT HSG DR .100CL

...

Part	Pitch [x]	Pitch [x]	Features	Mounting Type	Row Spacing [x]	Row Spacing	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Color	Contact Termination	Contact Type	Number of Rows	Insulation Material	Number of Positions	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Style	Material Flammability Rating	Current Rating (Amps)
TE Connectivity Raychem Cable Protection 102387-4	2.54 mm	0.1 in	Polarizing Key	Free Hanging (In-Line)	0.1 in	2.54 mm	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Black	Crimp	Female Socket	2	Thermoplastic	20
TE Connectivity Raychem Cable Protection 87631-5	2.54 mm	0.1 in		Free Hanging (In-Line)	0.1 in	2.54 mm	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Black	Crimp	Female Socket	2	Thermoplastic	10	Detent Lock
TE Connectivity Raychem Cable Protection 534267-8				Through Hole			Receptacle Bottom or Top Entry						Female Socket	2	Polyester Glass Filled	60	Push-Pull	150 Áin	3.81 Ám	Square	Tin-Lead	0.1 in	2.54 mm	Gold	3.18 mm	0.125 in	2.54 mm	0.1 in	Black	30 Áin	0.76 Ám	Phosphor Bronze	Solder	All	6.73 mm	0.265 in
TE Connectivity Raychem Cable Protection 3-87456-8	2.54 mm	0.1 in		Free Hanging (In-Line)	0.1 in	2.54 mm	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Black	Crimp	Female Socket	2	Glass Filled Nylon Polyamide (PA)	44
TE Connectivity Raychem Cable Protection 5-532956-3			Guide Pin Ears	Through Hole Right Angle			Receptacle						Female Socket	2		20	Push-Pull	50 µin	1.27 µm	Square	Tin	0.1 in	2.54 mm	Gold			2.54 mm	0.1 in	Black	30 Áin	0.76 Ám	Phosphor Bronze	Solder	All	6.05 mm	0.238 in	2.92 mm	0.115 in
TE Connectivity Raychem Cable Protection 7-147105-2			Pick and Place	Surface Mount			Receptacle Bottom or Top Entry	-65 ░C	125 °C				Female Socket	2	Polyester Glass Filled	44	Push-Pull	150 Áin	3.81 Ám	Square	Tin	0.1 in	2.54 mm	Gold			2.54 mm	0.1 in	Black	30 Áin	0.76 Ám	Phosphor Bronze	Solder	All	6.73 mm	0.265 in			Board to Board Cable	UL94 V-0	2 A
TE Connectivity Raychem Cable Protection 2-87456-3	2.54 mm	0.1 in		Free Hanging (In-Line)	0.1 in	2.54 mm	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Black	Crimp	Female Socket	2	Glass Filled Nylon Polyamide (PA)	28
TE Connectivity Raychem Cable Protection 2-87456-7	2.54 mm	0.1 in		Free Hanging (In-Line)	0.1 in	2.54 mm	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Black	Crimp	Female Socket	2	Glass Filled Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 5-532955-1			Guide Pin Ears	Through Hole Right Angle			Receptacle						Female Socket	2		12	Push-Pull	50 µin	1.27 µm	Square	Tin	0.1 in	2.54 mm	Gold			2.54 mm	0.1 in	Black	15 µin	0.38 µm	Phosphor Bronze	Solder	All	6.05 mm	0.238 in	2.92 mm	0.115 in
TE Connectivity Raychem Cable Protection 2-87631-9	2.54 mm	0.1 in		Free Hanging (In-Line)	0.1 in	2.54 mm	Receptacle	-65 ░C	105 ░C	Contacts Not Included	Black	Crimp	Female Socket	2	Glass Filled Nylon Polyamide (PA)	34	Detent Lock
