Technical Specifications
Parameters and characteristics for this part
| Specification | LM4041CELT-1.2 |
|---|---|
| Current - Cathode [diameter] | 50 µA |
| Current - Output | 12 mA |
| Mounting Type | Surface Mount |
| Noise - 10Hz to 10kHz | 60 µVrms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1.81 mOhm |

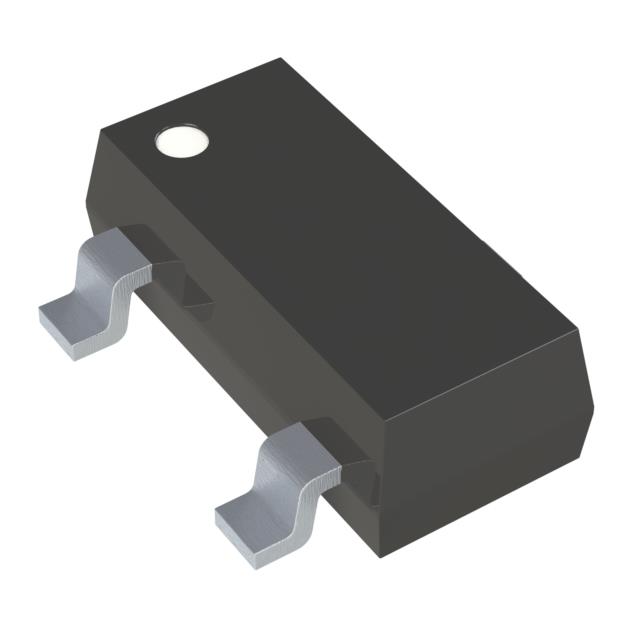

| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Reference Type | Shunt |
| Supplier Device Package | SOT-23-3 |
| Temperature Coefficient | 100 ppm/°C |
| Voltage - Output (Min/Fixed) | 1.225 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.53 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.59 | |||
| 25 | $ 0.53 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.40 | |||
| Tape & Reel (TR) | 3000 | $ 0.38 | ||
| 6000 | $ 0.37 | |||
| 9000 | $ 0.37 | |||
| 15000 | $ 0.36 | |||
| 21000 | $ 0.36 | |||
Description
General part information
LM4041 Series
The LM4041 is a micropower shunt voltage reference, providing a stable 1.225 V output voltage, with an initial accuracy of 0.1% @ 25 °C and a low temperature coefficient. Available in SOT323-5L and SOT23-3L surface mount packages, it can be designed in applications where space saving is a critical issue. The low operating current is a key advantage for power restricted designs. In addition, the LM4041 is very stable and can be used in a broad range of application conditions.
