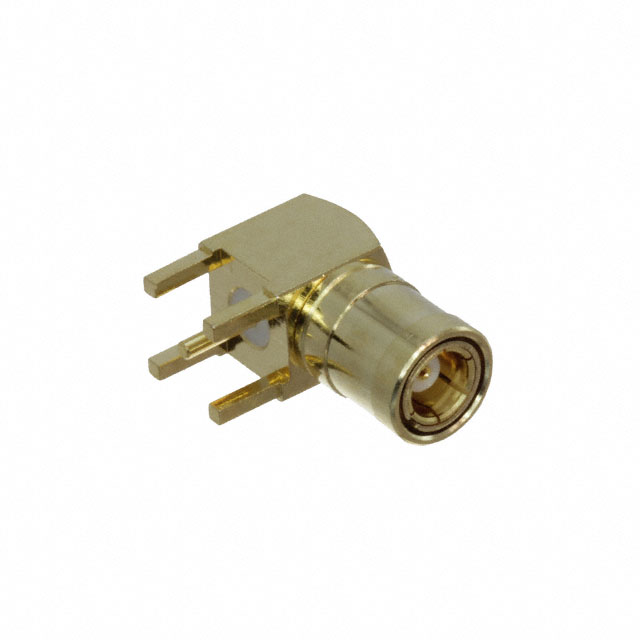

Specification	RF3-04A-T-00-50-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Code A
Features - Code	A
Frequency - Max	4 GHz
Housing Color	White
Impedance	50 Ohm
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	335 V

RF3-04 Series

Part	Features - Code	Features	Number of Ports	Connector Style	Center Contact Material	Impedance	Frequency - Max	Housing Color	Shield Termination	Connector Type	Mounting Type	Fastening Type	Contact Termination	Dielectric Material	Body Material	Voltage Rating	Body Finish	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)
Adam Tech RF3-04A-T-00-50-G	A	Code A	1	SMB	Brass	50 Ohm	4 GHz	White	Solder	Female Socket Plug	Right Angle Through Hole	Snap-On	Solder	Polytetrafluoroethylene (PTFE)	Brass	335 V	Gold	Gold	-65 °C	165 °C
