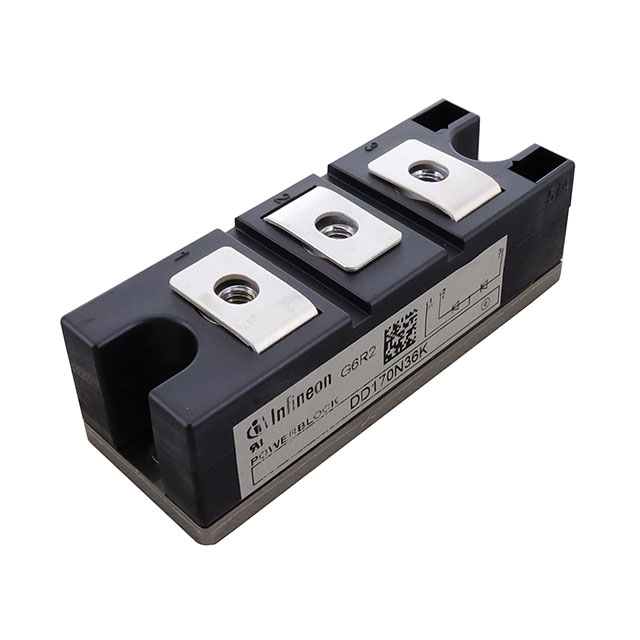

DD170N36KHPSA1

Active

Infineon Technologies

THE DD170N36K IS A 34 MM DIODE/DIODE MODULE WITH 3600 V IN PRESSURE CONTACT TECHNOLOGY

Search across all available documentation for this part.

Active

Infineon Technologies

THE DD170N36K IS A 34 MM DIODE/DIODE MODULE WITH 3600 V IN PRESSURE CONTACT TECHNOLOGY

Technical Specifications

Parameters and characteristics for this part

Specification	DD170N36KHPSA1

Current - Average Rectified (Io) (per Diode)	170 A
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction	150 ¯C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	BG-PB34AT-1
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	3600 V

Part	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Technology	Package / Case	Operating Temperature - Junction	Diode Configuration	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type
Infineon Technologies DD170N36KHPSA1	BG-PB34AT-1	170 A	Standard	Module	150 ¯C	1 Pair Series Connection	Standard Recovery >500ns	200 mA	3600 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3600 V, 170 A 34 mm Power Block AMPT Diode module for phase control inpressure contact technologyusing an isolated copper base plate.
