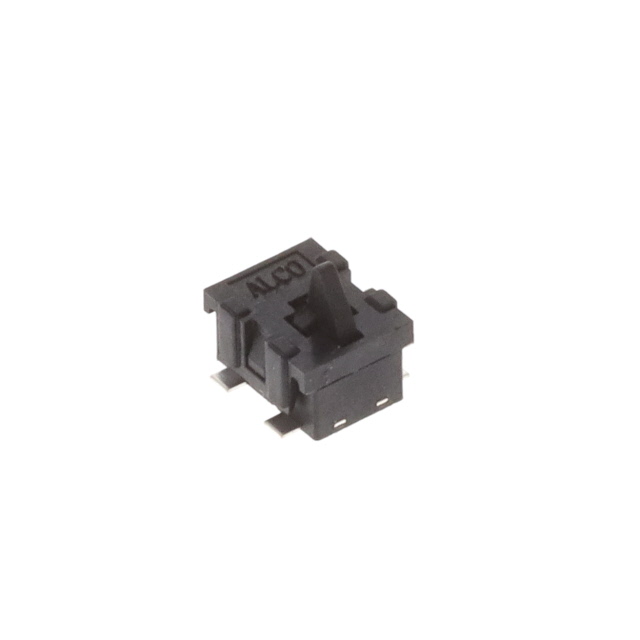

JJBV0UG335NONPRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECTOR SPST-NO 0.1A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JJBV0UG335NONPRTR |
|---|---|
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 80000 Cycles |
| Mechanical Life | 80000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 35 gf |
| Operating Position | 3.05 mm |
| Operating Position | 0.12 in |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -15 °C |
| Pretravel | 0.012 in |
| Pretravel | 0.3 mm |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.99 | |
| 10 | $ 0.96 | |||
| 25 | $ 0.89 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.61 | |||
| Tape & Reel (TR) | 2000 | $ 0.54 | ||
Description
General part information
JJBV0 Series
Switch SPST-NO Surface Mount
