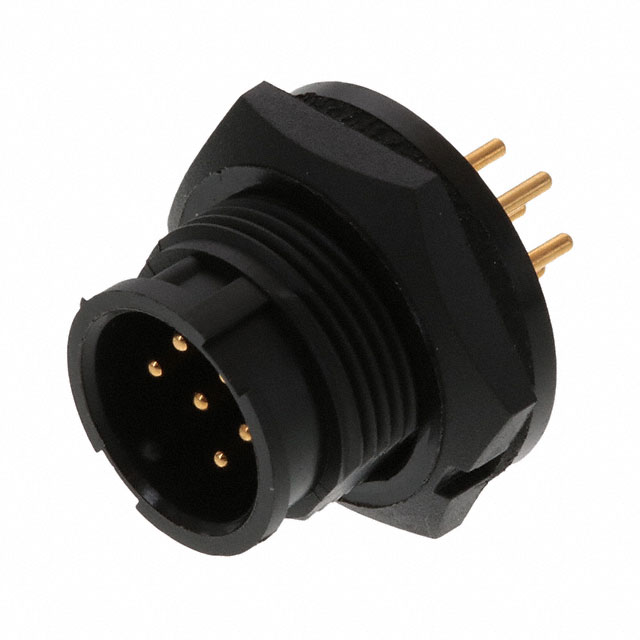

7291-6PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7291-6PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	600 V

CONN RCPT MALE 6POS GOLD SOLDER

Part	Voltage Rating	Ingress Protection	Current Rating (Amps)	Color	Primary Material	Termination	Connector Type	Mounting Type	Orientation	Mounting Feature	Contact Finish - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Contact Material	Applications	Shielding	Number of Positions
Conxall/Switchcraft 7291-6PG-300	600 V	Weathertight	Varies by Wire Gauge	Black	Plastic	Solder	Male Pins, Receptacle	Panel Mount, Through Hole	Keyed	Bulkhead - Front Side Nut	Gold	Bayonet Lock	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Automotive, Communication Systems, Instrumentation	Unshielded	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder
