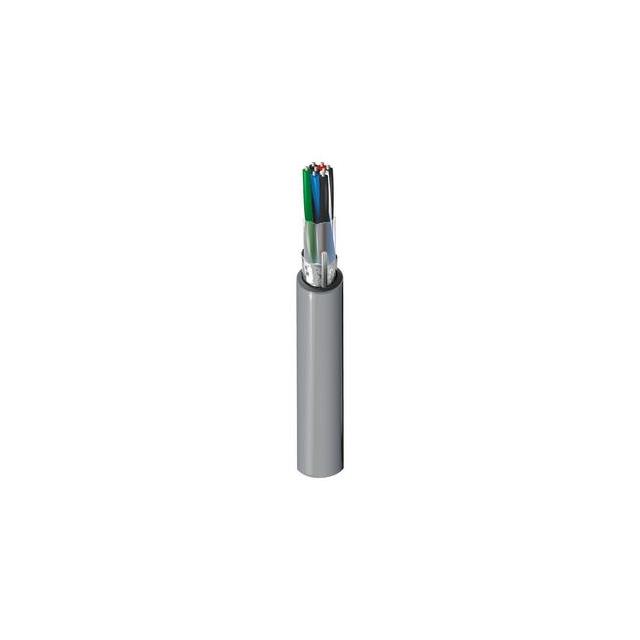

9305 060U500

Active

Belden Inc.

MULTI-PAIR 8CON 22AWG CHROM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9305 060U500

Active

Belden Inc.

MULTI-PAIR 8CON 22AWG CHROM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9305 060U500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

9305 Series

Part	Wire Gauge	Usage	Conductor Strand	Conductor Material	Features	Cable Type	Conductor Insulation	Shield Material	Jacket (Insulation) Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Shield Coverage	Shield Type	Length	Length	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Ratings
Belden Inc. 9305 0601000	22 AWG	Audio Control Instrumentation	Solid	Copper Tinned	Drain Wire	Multi-Pair	Poly-Vinyl Chloride (PVC)	Aluminum	Poly-Vinyl Chloride (PVC)	300 V	6.73 mm	0.265 in	Chrome	100 %	Foil	1000 ft	304.8 m	8	-20 C	80 C
Belden Inc. 9305 0605000	22 AWG	Audio Control Instrumentation	Solid	Copper Tinned	Drain Wire	Multi-Pair	Poly-Vinyl Chloride (PVC)	Aluminum	Poly-Vinyl Chloride (PVC)	300 V	6.73 mm	0.265 in	Chrome	100 %	Foil			8	-20 C	80 C
Belden Inc. 9305 060100	22 AWG	Audio Control Instrumentation	Solid	Copper Tinned	Drain Wire	Multi-Pair	Poly-Vinyl Chloride (PVC)	Aluminum	Poly-Vinyl Chloride (PVC)		6.73 mm	0.265 in	Chrome	100 %	Foil			8	-20 C	80 C	30.5 m	100 ft	UL Style 2464
Belden Inc. 9305 060U1000	22 AWG	Audio Control Instrumentation	Solid	Copper Tinned	Drain Wire	Multi-Pair	Poly-Vinyl Chloride (PVC)	Aluminum	Poly-Vinyl Chloride (PVC)	300 V	6.73 mm	0.265 in	Chrome	100 %	Foil	1000 ft	304.8 m	8	-20 C	80 C
Belden Inc. 9305 060U500	22 AWG	Audio Control Instrumentation	Solid	Copper Tinned	Drain Wire	Multi-Pair	Poly-Vinyl Chloride (PVC)	Aluminum	Poly-Vinyl Chloride (PVC)	300 V	6.73 mm	0.265 in	Chrome	100 %	Foil			8	-20 C	80 C	152.4 m	500 '
Belden Inc. 9305 060500	22 AWG	Audio Control Instrumentation	Solid	Copper Tinned	Drain Wire	Multi-Pair	Poly-Vinyl Chloride (PVC)	Aluminum	Poly-Vinyl Chloride (PVC)	300 V	6.73 mm	0.265 in	Chrome	100 %	Foil			8	-20 C	80 C	152.4 m	500 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.37

Description

General part information

9305 Series

8 (4 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil 500.0' (152.4m)
