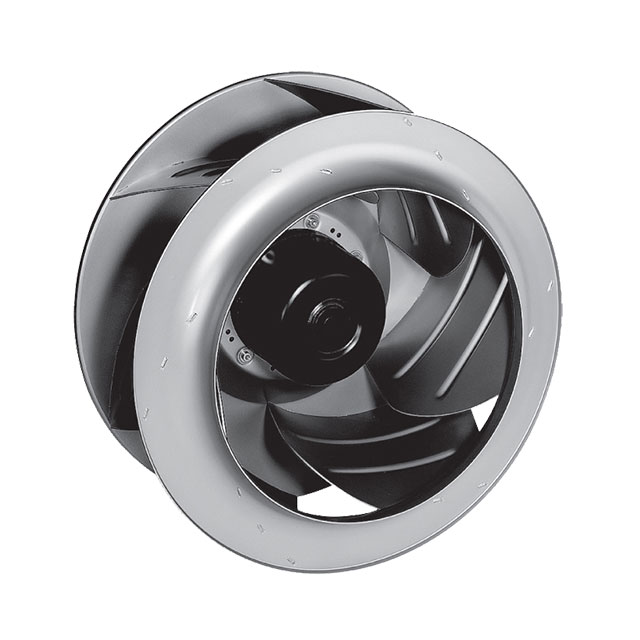

R3G560-AH23-65F

Active

ebm-papst Inc.

FAN BLOWER CENTRIFUGAL

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CENTRIFUGAL

Technical Specifications

Parameters and characteristics for this part

Specification	R3G560-AH23-65F

Air Flow	7.8 CFM
Air Flow	0.218 m³/min
Approval Agency	UL
Current Rating (Amps)	4 A
Fan Type	Motorized Impellers
Features	Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Material - Blade	Aluminum
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	3000 W
RPM	1520 RPM
Size / Dimension	Round
Size / Dimension [diameter]	565 mm
Voltage - Rated	480 VAC
Voltage Range [Max]	480 VAC
Voltage Range [Min]	380 VAC
Weight	29.5 kg
Weight	65 lbs

Part	Air Flow	Air Flow	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension	Power (Watts)	Approval Agency	Material - Blade	Weight	Weight	Material - Frame	Voltage - Rated	Features	RPM	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Fan Type
ebm-papst Inc. R3G560-AH23-65F	7.8 CFM	0.218 m³/min	IP54 - Dust Protected Water Resistant	-25 °C	60 °C	565 mm	Round	3000 W	UL	Aluminum	29.5 kg	65 lbs	Aluminum	480 VAC	Electronic Commutation (EC)	1520 RPM	4 A	480 VAC	380 VAC	Motorized Impellers
ebm-papst Inc. R3G560-AH29-66F	7.8 CFM	0.218 m³/min	IP54 - Dust Protected Water Resistant			565 mm	Round	3000 W	UL	Aluminum	29.5 kg	65 lbs	Aluminum	240 VAC	Electronic Commutation (EC)	1520 RPM	8.5 A			Motorized Impellers
