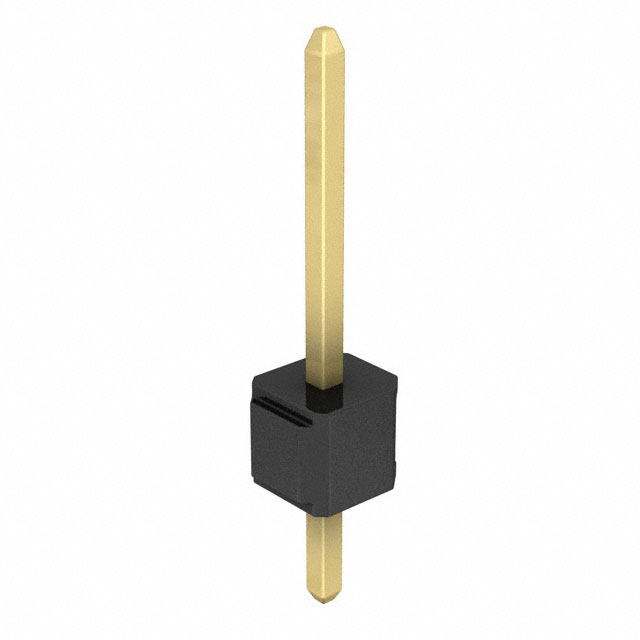

929705-11-01-EU

Active

3M (TC)

2.5A STRAIGHT GOLD 1P -40℃~+105℃ BLACK SINGLE ROW COPPER ALLOY PLUGIN PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929705-11-01-EU

Active

3M (TC)

2.5A STRAIGHT GOLD 1P -40℃~+105℃ BLACK SINGLE ROW COPPER ALLOY PLUGIN PIN HEADERS ROHS

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929705-11-01-EU

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.543 in
Overall Contact Length	13.8 mm
Shrouding	Unshrouded
Termination	Solder

929705 Series

...

Part	Contact Material	Insulation Height	Insulation Height	Insulation Material	Contact Finish - Mating	Number of Positions Loaded	Shrouding	Contact Shape	Insulation Color	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Connector Type	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Termination	Number of Rows	Contact Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Number of Positions
3M (TC) 929705-11-22-I	Copper Alloy	0.1 in	2.54 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	All	Unshrouded	Square	Black	Push-Pull	0.543 in	13.8 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header	22 positions	0.1 in	2.54 mm	3.18 mm	0.125 in	Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C
3M (TC) 929705-06-16-I	Copper Alloy	0.1 in	2.54 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	All	Unshrouded	Square	Black	Push-Pull		28.65 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header		0.1 in	2.54 mm			Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C	0.71 "	18.03 mm	1.128 "	16
3M (TC) 929705-09-07-EU	Copper Alloy	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	All	Unshrouded	Square	Black	Push-Pull	0.563 "	14.3 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header	7	0.1 in	2.54 mm			Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C	0.145 in	3.68 mm
3M (TC) 929705-03-36-EU	Copper Alloy	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	All	Unshrouded	Square	Black	Push-Pull	0.828 in	21.03 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header	36	0.1 in	2.54 mm			Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C
3M (TC) 929705-11-01-EU	Copper Alloy	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	All	Unshrouded	Square	Black	Push-Pull	0.543 in	13.8 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header	1			3.18 mm	0.125 in	Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C
3M (TC) 929705-11-15-EU	Copper Alloy	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	All	Unshrouded	Square	Black	Push-Pull	0.543 in	13.8 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header	15	0.1 in	2.54 mm	3.18 mm	0.125 in	Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C
3M (TC) 929705-11-27-EU	Copper Alloy	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	All	Unshrouded	Square	Black	Push-Pull	0.543 in	13.8 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header	27	0.1 in	2.54 mm	3.18 mm	0.125 in	Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C
3M (TC) 929705-01-23-I	Copper Alloy	0.1 in	2.54 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Gold	All	Unshrouded	Square	Black	Push-Pull	0.528 in	13.42 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header	23	0.1 in	2.54 mm		0.11 in	Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C		2.79 mm
3M (TC) 929705-01-05-EU	Copper Alloy	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	All	Unshrouded	Square	Black	Push-Pull	0.528 in	13.42 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header		0.1 in	2.54 mm		0.11 in	Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C		2.79 mm
3M (TC) 929705-01-35-EU	Copper Alloy	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	All	Unshrouded	Square	Black	Push-Pull	0.528 in	13.42 mm	10 çin	0.25 çm	2.5 A	UL94 V-0	10 çin	0.25 çm	Through Hole	Breakaway Header	35	0.1 in	2.54 mm		0.11 in	Gold	Solder	1	Male Pin	0.318 "	8.08 mm	-40 °C	105 ░C		2.79 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.32
		10	$ 0.27
		100	$ 0.21
		500	$ 0.18
		1000	$ 0.15
		5000	$ 0.13
		10000	$ 0.12
LCSC	Piece	1	$ 0.12
		200	$ 0.05
		500	$ 0.05
		1000	$ 0.05

Description

General part information

929705 Series

Connector Header Through Hole 1 position
