1132-4010

Active

Amphenol SV Microwave

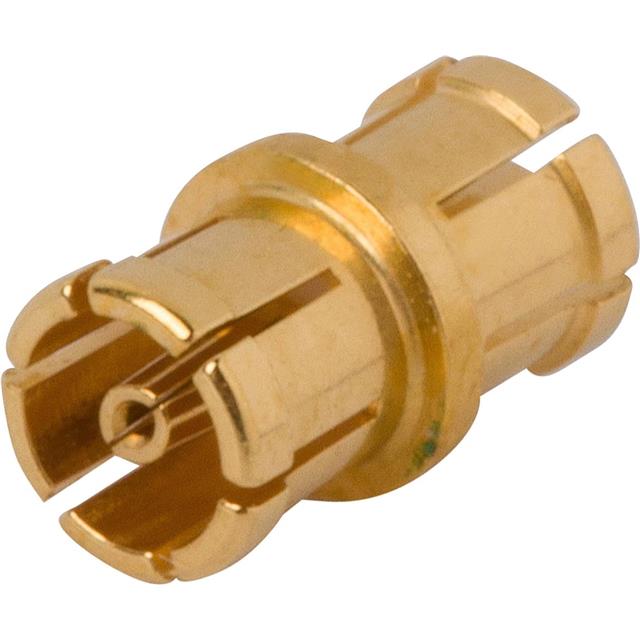

CONN ADAPT JACK-JACK SMPM 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK SMPM 50 OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1132-4010	1132-40 Series

Adapter Series	SMPM to SMPM	SMPM to SMPM, SMA to SMPM
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Finish	Gold	Gold, Gold; Passivated
Body Material	Beryllium Copper	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series, Between Series
Convert From (Adapter End)	Female Socket, SMPM Jack	Female Socket, SMPM Jack
Convert To (Adapter End)	Female Socket, SMPM Jack	Female Socket, SMPM Jack, SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polychlorotrifluoroethylene (PCTFE)
Fastening Type	Snap-On	Snap-On, Threaded
Frequency - Max [Max]	40 GHz	18 - 65 GHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.5 dB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Style	Straight	Straight

RF / COAXIAL ADAPTER, SMPM, JACK, SMPM, JACK, STRAIGHT ADAPTER, 50 OHM

Part	Body Finish	Body Material	Conversion Type	Dielectric Material	Center Gender	Convert To (Adapter End)	Impedance	Convert From (Adapter End)	Style	Adapter Series	Mounting Type	Adapter Type	Center Contact Material	Insertion Loss	Center Contact Plating	Fastening Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol SV Microwave 1132-4006	Gold	Beryllium Copper	Same Series	Polytetrafluoroethylene (PTFE)	Female to Female	Female Socket, SMPM Jack	50 Ohms	Female Socket, SMPM Jack	Straight	SMPM to SMPM	Free Hanging (In-Line)	Jack to Jack	Beryllium Copper	0.5 dB	Gold	Snap-On	40 GHz
Amphenol SV Microwave 1132-4003	Gold; Passivated	Beryllium Copper, Stainless Steel	Between Series	Polychlorotrifluoroethylene (PCTFE), Polytetrafluoroethylene (PTFE)		Male Pin, SMA Plug	50 Ohms	Female Socket, SMPM Jack	Straight	SMA to SMPM	Free Hanging (In-Line)	Plug to Jack	Beryllium Copper		Gold	Snap-On, Threaded	18 GHz
Amphenol SV Microwave 1132-4021	Gold	Beryllium Copper	Same Series	Polytetrafluoroethylene (PTFE)	Female to Female	Female Socket, SMPM Jack	50 Ohms	Female Socket, SMPM Jack	Straight	SMPM to SMPM	Free Hanging (In-Line)	Jack to Jack	Beryllium Copper		Gold	Snap-On	65 GHz	-55 °C	125 °C
Amphenol SV Microwave 1132-4010	Gold	Beryllium Copper	Same Series	Polytetrafluoroethylene (PTFE)	Female to Female	Female Socket, SMPM Jack	50 Ohms	Female Socket, SMPM Jack	Straight	SMPM to SMPM	Free Hanging (In-Line)	Jack to Jack	Beryllium Copper		Gold	Snap-On	40 GHz
