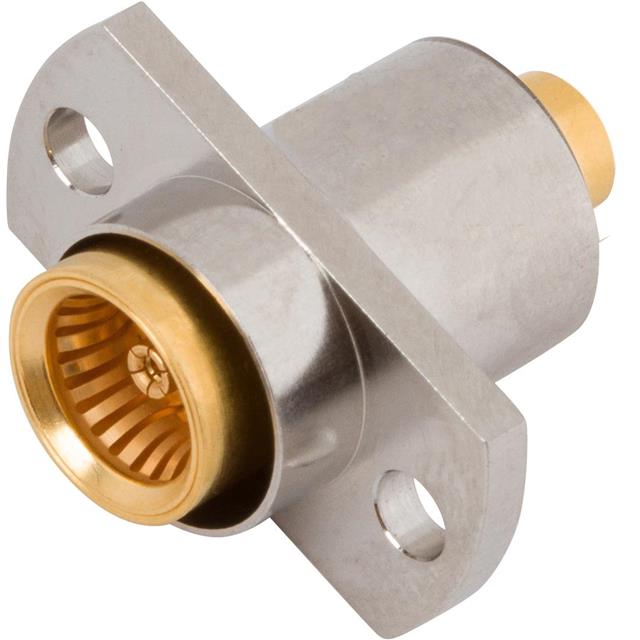

SF1732-6004

Active

Amphenol SV Microwave

CONN BMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN BMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SF1732-6004

Body Material	Stainless Steel
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	22 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	5000
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder

Part	Housing Color	Number of Ports	Center Contact Material	Mating Cycles	Cable Group	Cable Group	Center Contact Plating	Connector Type	Frequency - Max [Max]	Mounting Feature	Impedance	Connector Style	Dielectric Material	Shield Termination	Contact Termination	Fastening Type	Body Material
Amphenol SV Microwave SF1732-6004	Silver	1	Beryllium Copper	5000	RG-402 (.141" Flexible)	0.141 in	Gold	Female Socket Jack	22 GHz	Flange	50 Ohms	BMA	Polytetrafluoroethylene (PTFE)	Solder	Solder	Snap-On	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
