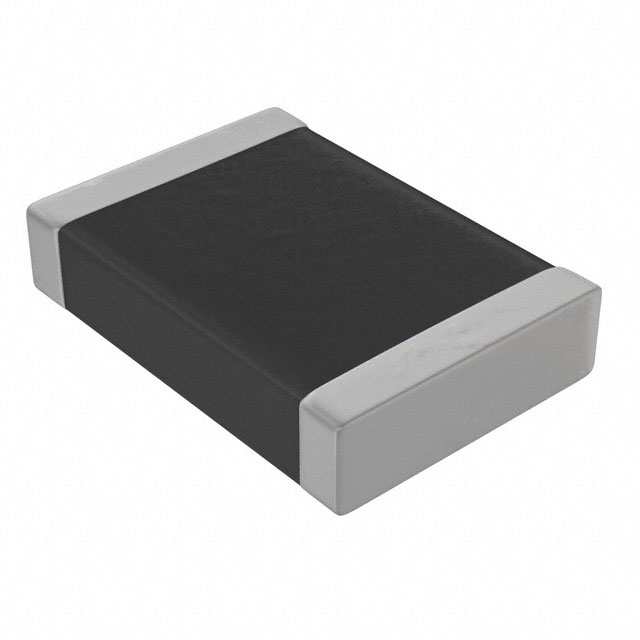

LDECB2680KA0N00 - 1812 pkg

LDECB2680KA0N00

Active
KEMET

CAP FILM 0.068UF 50V PEN 10% (3.3 X 2.5 X 2MM) STACKED 125°C AUTOMOTIVE AEC-Q200 T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetLDECB2680KA0N00 Spec Sheet+3
LDECB2680KA0N00 - 1812 pkg

LDECB2680KA0N00

Active
KEMET

CAP FILM 0.068UF 50V PEN 10% (3.3 X 2.5 X 2MM) STACKED 125°C AUTOMOTIVE AEC-Q200 T/R

Deep-Dive with AI

DocumentsDatasheetLDECB2680KA0N00 Spec Sheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationLDECB2680KA0N00
ApplicationsAutomotive
Capacitance0.068 µF
Dielectric MaterialPolyethylene Naphthalate (PEN), Metallized - Stacked, Polyester
FeaturesHigh Temperature
Height - Seated (Max) [Max] [z]2 mm
Height - Seated (Max) [Max] [z]0.079 in
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / Case1210
Package / Case3225 Metric
RatingsAEC-Q200
Size / Dimension [x]0.13 in
Size / Dimension [x]3.3 mm
Size / Dimension [y]0.098 in
Size / Dimension [y]2.5 mm
TerminationSolder Pads
Tolerance10 %
Voltage Rating - AC40 V
Voltage Rating - DC50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 2250$ 0.36
4500$ 0.36
6750$ 0.35
9000$ 0.35
11250$ 0.34
15750$ 0.34
22500$ 0.34
DigikeyCut Tape (CT) 1$ 1.04
10$ 0.78
50$ 0.71
100$ 0.58
500$ 0.47
1000$ 0.41
Digi-Reel® 1$ 1.04
10$ 0.78
50$ 0.71
100$ 0.58
500$ 0.47
1000$ 0.41
Tape & Reel (TR) 2250$ 0.41
4500$ 0.39
6750$ 0.37
11250$ 0.36
15750$ 0.35
22500$ 0.35
NewarkEach (Supplied on Full Reel) 1$ 0.48
5000$ 0.47
10000$ 0.43
20000$ 0.40
30000$ 0.38
50000$ 0.36

Description

General part information

LDECB Series

0.068 µF Film Capacitor 40V 50V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 1210 (3225 Metric)
