SSF-LXH25780HGW

Active

Lumex Opto/Components Inc.

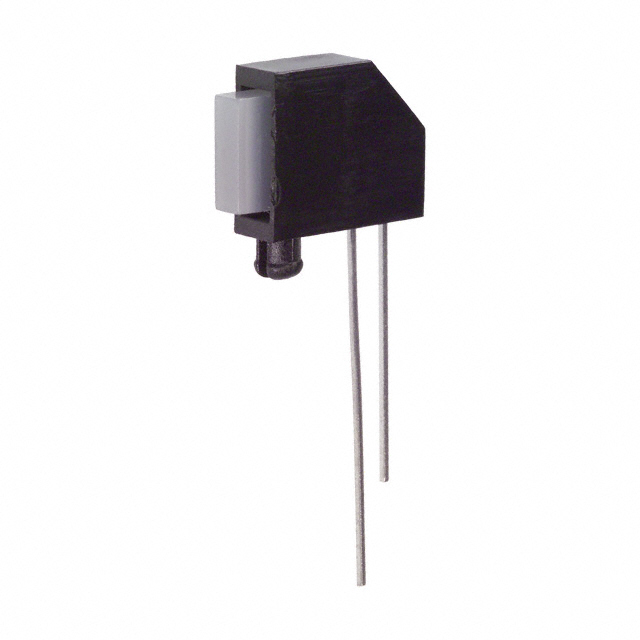

LED LGT BAR 7X2.5MM RA GRN DIFF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSF-LXH25780HGW

Active

Lumex Opto/Components Inc.

LED LGT BAR 7X2.5MM RA GRN DIFF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH25780HGW	SSF-LXH25780 Series

Color	Red, Green	Green, Red
Configuration	Bar - Single, SIP	Bar - Single, SIP
Current	-	25 - 30 mA
Lens Size [x]	7 mm	7 mm
Lens Size [y]	2.5 mm	2.5 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Type	Diffused, White	Tinted, Diffused, White
Millicandela Rating	-	9 - 50 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	110 °	110 °
Voltage Rating	2.2 V, 2 V	1.7 - 2.2 V
Wavelength - Peak	-	565 - 660 nm

SSF-LXH25780 Series

LED LGT BAR 7X2.5MM RA GRN DIFF

Part	Configuration	Color	Lens Size [y]	Lens Size [x]	Mounting Type	Wavelength - Peak	Viewing Angle	Lens Style	Millicandela Rating	Lens Type	Voltage Rating	Current
Lumex Opto/Components Inc. SSF-LXH25780GD	Bar - Single, SIP	Green	2.5 mm	7 mm	Through Hole, Right Angle	565 nm	110 °	Rectangle with Flat Top	9 mcd	Diffused, Tinted
Lumex Opto/Components Inc. SSF-LXH25780HGW	Bar - Single, SIP	Green, Red	2.5 mm	7 mm	Through Hole, Right Angle		110 °	Rectangle with Flat Top		Diffused, White	2 V, 2.2 V
Lumex Opto/Components Inc. SSF-LXH25780IGW	Bar - Single, SIP	Green, Red	2.5 mm	7 mm	Through Hole, Right Angle	565 nm, 635 nm	110 °	Rectangle with Flat Top		Diffused, White	2 V, 2.2 V	25 mA, 30 mA
Lumex Opto/Components Inc. SSF-LXH25780SRD	Bar - Single, SIP	Red	2.5 mm	7 mm	Through Hole, Right Angle	660 nm	110 °	Rectangle with Flat Top	50 mcd	Diffused, Tinted	1.7 V
Lumex Opto/Components Inc. SSF-LXH25780ID	Bar - Single, SIP	Red	2.5 mm	7 mm	Through Hole, Right Angle	635 nm	110 °	Rectangle with Flat Top	15 mcd	Diffused, Tinted	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.86
		10	$ 1.24
		100	$ 0.96
		500	$ 0.86
		1000	$ 0.74
		2000	$ 0.70
		5000	$ 0.69
		10000	$ 0.68

Description

General part information

SSF-LXH25780 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green, Red Diffused, White 2.2V Green, 2V Red 20mA Rectangle with Flat Top 7.00mm x 2.50mm Through Hole, Right Angle
