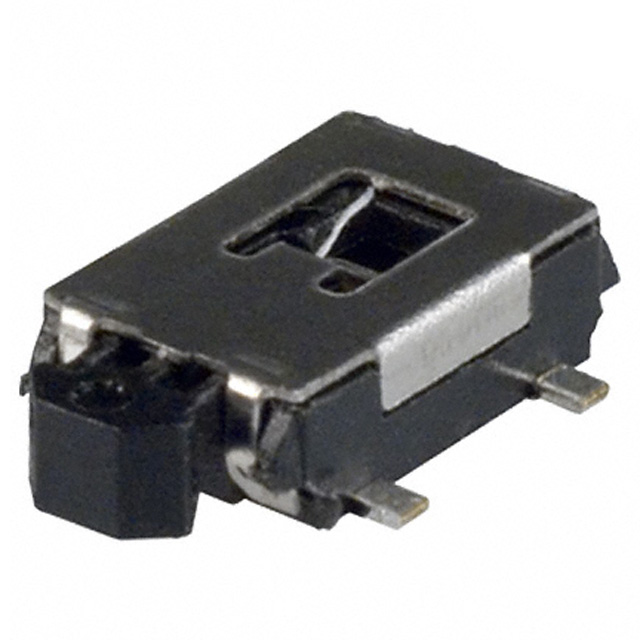

901AGQF180
ObsoleteE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
901AGQF180
ObsoleteE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 901AGQF180 |
|---|---|
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Features | Board Guide |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Operating Force | 180 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | Off-Mom |
| Switch Travel [custom] | 0.3 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
901AGQ Series
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
