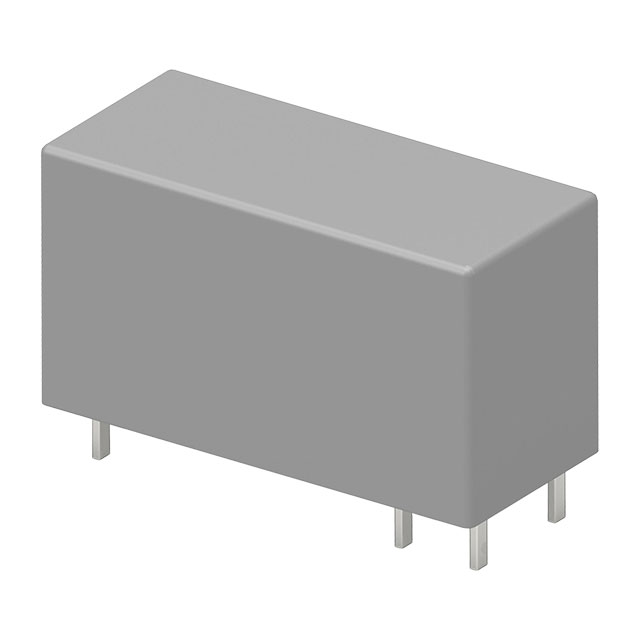

2-1393240-8
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 12V
Deep-Dive with AI
Search across all available documentation for this part.
2-1393240-8
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1393240-8 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 50 mA |
| Coil Insulation | Class F |
| Coil Resistance | 240 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.97 | |
| 20 | $ 8.41 | |||
| 40 | $ 7.10 | |||
| 100 | $ 6.73 | |||
| 260 | $ 5.98 | |||
| 500 | $ 5.61 | |||
| 1000 | $ 5.23 | |||
Description
General part information
RT33LF Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
