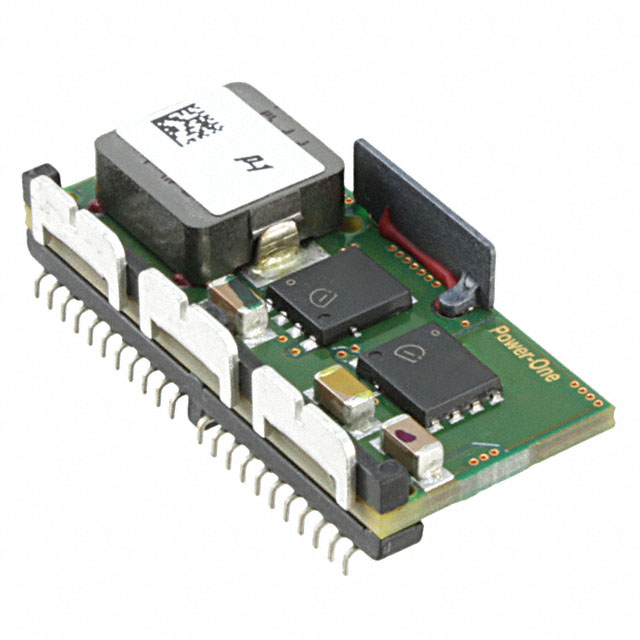

DP7130G-R100

Active

Bel Power Solutions

DC DC CONVERTER 0.7-3.6V

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 0.7-3.6V

Technical Specifications

Parameters and characteristics for this part

Specification	DP7130G-R100

Applications	ITE (Commercial)
Current - Output (Max) [Max]	30 A
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Size / Dimension [x]	1.26 in
Size / Dimension [x]	32 mm
Size / Dimension [y]	0.33 in
Size / Dimension [y]	8.5 mm
Size / Dimension [z]	15.2 mm
Size / Dimension [z]	0.6 "
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	8 V
Voltage - Output 1 [Max]	3.6 V
Voltage - Output 1 [Min]	0.7 V

DC DC CONVERTER 0.7-3.6V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Package / Case	Type	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Applications
Bel Power Solutions DP7130G-R100	15.2 mm	0.33 in	1.26 in	0.6 "	8.5 mm	32 mm	3.6 V	0.7 V	85 °C	-40 °C	14 V	30 A	Module	Non-Isolated PoL Module, Digital	1	8 V	Surface Mount	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 3.6V 30A 8V - 14V Input

Technical documentation and resources

No documents available
