1532E

Active

Hammond Manufacturing

FIXED IND 55UH 500MA 1 OHM TH

Search across all available documentation for this part.

Active

Hammond Manufacturing

FIXED IND 55UH 500MA 1 OHM TH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

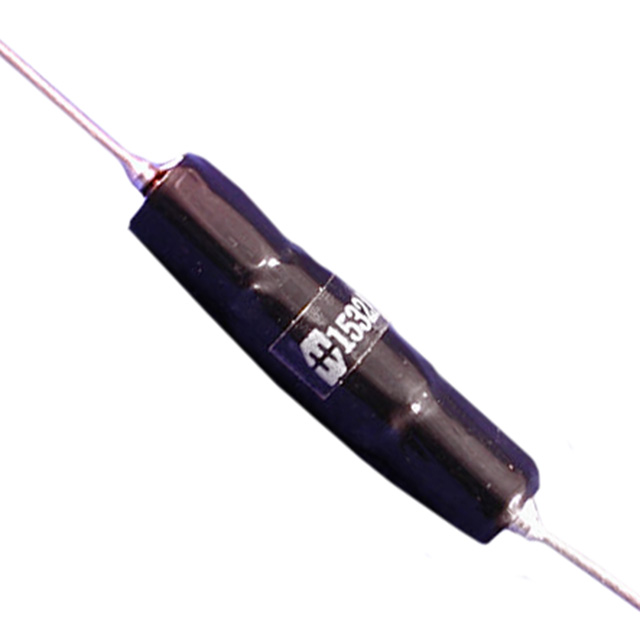

55 µH Unshielded Wirewound Inductor 500 mA 1Ohm Max Axial

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

FIXED IND 39UH 600MA 650 MOHM TH

Part	Type	Tolerance	Inductance	Inductance Frequency - Test	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	DC Resistance (DCR)	Frequency - Self Resonant	Shielding	Mounting Type	Package / Case	Q @ Freq	Current Rating (Amps)	DC Resistance (DCR) [Max]
Hammond Manufacturing 1532D	Wirewound	10 %	39 µH	2.5 MHz	0.29 in	22.22 mm	0.875 in	7.37 mm	650 mOhm	200 kHz	Unshielded	Through Hole	Axial	2.5 MHz, 70	600 mA
Hammond Manufacturing 1532A	Wirewound	10 %	10 µH	2.5 MHz	0.29 in	22.22 mm	0.875 in	7.37 mm	110 mOhm	40 MHz	Unshielded	Through Hole	Axial	2.5 MHz, 69	1.5 A
Hammond Manufacturing 1532B	Wirewound	10 %	15 µH	2.5 MHz	0.29 in	22.22 mm	0.875 in	7.37 mm		33 MHz	Unshielded	Through Hole	Axial	2.5 MHz, 62	1 A	170 mOhm
Hammond Manufacturing 1532E	Wirewound	10 %	55 µH	2.5 MHz	0.29 in	22.22 mm	0.875 in	7.37 mm		17 MHz	Unshielded	Through Hole	Axial	2.5 MHz, 72	0.5 A	1 Ohm
Hammond Manufacturing 1532H	Wirewound	10 %	100 µH	790 kHz	0.29 in	22.22 mm	0.875 in	7.37 mm		12 MHz	Unshielded	Through Hole	Axial	107, 790 kHz	400 mA	3 Ohm
Hammond Manufacturing 1532C	Wirewound	10 %	24 µH	2.5 MHz	0.29 in	22.22 mm	0.875 in	7.37 mm		25 MHz	Unshielded	Through Hole	Axial	2.5 MHz, 65	800 mA	340 mOhm
