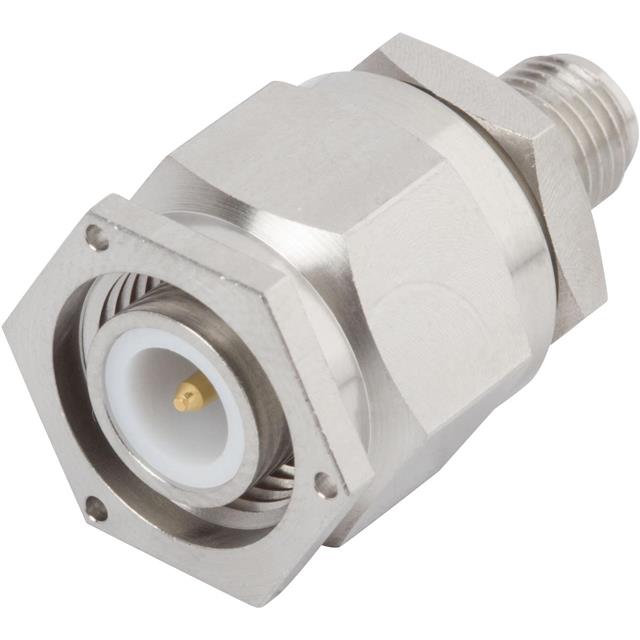

SF1103-6001

Active

Amphenol SV Microwave

COAX ADAPT SMA TO PTNC

Search across all available documentation for this part.

Active

Amphenol SV Microwave

COAX ADAPT SMA TO PTNC

Technical Specifications

Parameters and characteristics for this part

Specification	SF1103-6001

Adapter Series	SMA to PTNC
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	PTNC Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	15 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Adapter Type	Style	Center Contact Plating	Impedance	Body Material	Mounting Type	Dielectric Material	Conversion Type	Frequency - Max [Max]	Convert From (Adapter End)	Center Contact Material	Convert To (Adapter End)	Adapter Series	Mating Cycles
Amphenol SV Microwave SF1103-6001	Plug to Jack	Straight	Gold	50 Ohms	Stainless Steel	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Between Series	15 GHz	PTNC Plug Male Pin	Beryllium Copper	Female Socket SMA Jack	SMA to PTNC	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector PTNC Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
