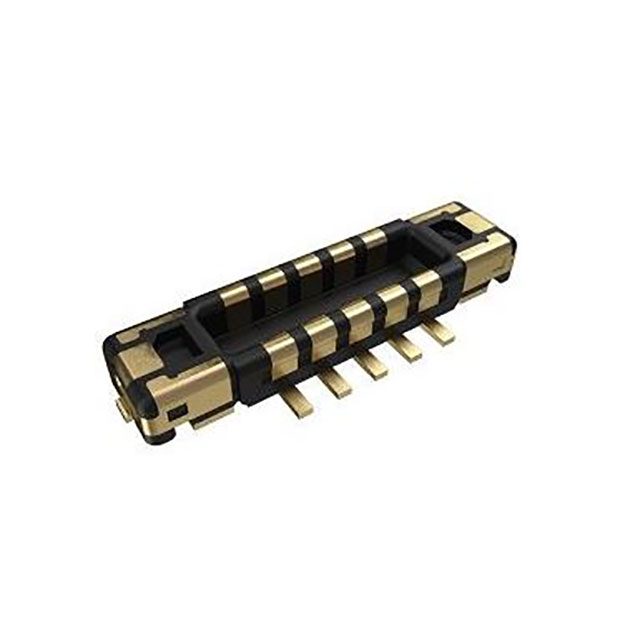

103P010BB100
ActiveAmphenol ICC (FCI)
MICRO BTB CONNECTOR, P=0.35MM, S
Deep-Dive with AI
Search across all available documentation for this part.
103P010BB100
ActiveAmphenol ICC (FCI)
MICRO BTB CONNECTOR, P=0.35MM, S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 103P010BB100 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Solder Retention |
| Height Above Board | 0.46 mm |
| Height Above Board | 0.018 in |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 15000 | $ 0.11 | ||
Description
General part information
103P010 Series
10 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
