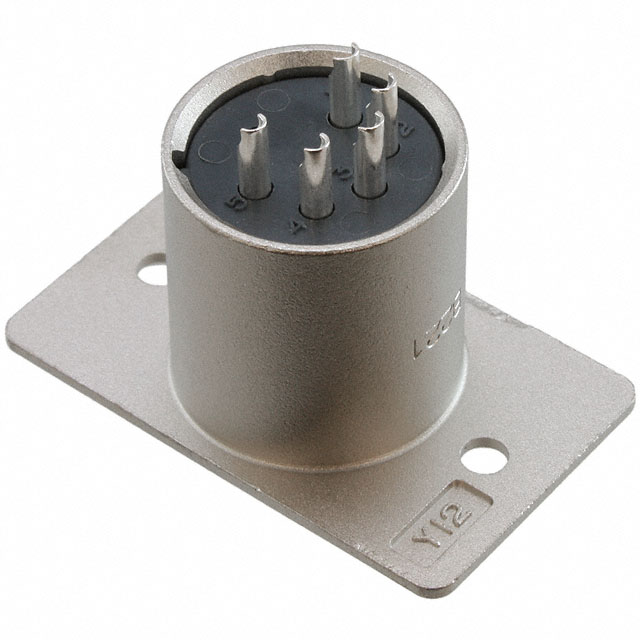

XLR532
ActiveITT Cannon, LLC
CONN RCPT MALE XLR 5P SOLDER CUP
XLR532
ActiveITT Cannon, LLC
CONN RCPT MALE XLR 5P SOLDER CUP
Description
General part information
XLR53 Series
5 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | XLR532 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Fastening Type | Latch Lock |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -35 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | XLR |
| Termination | Solder Cup |
| Voltage Rating | 133 VAC |
