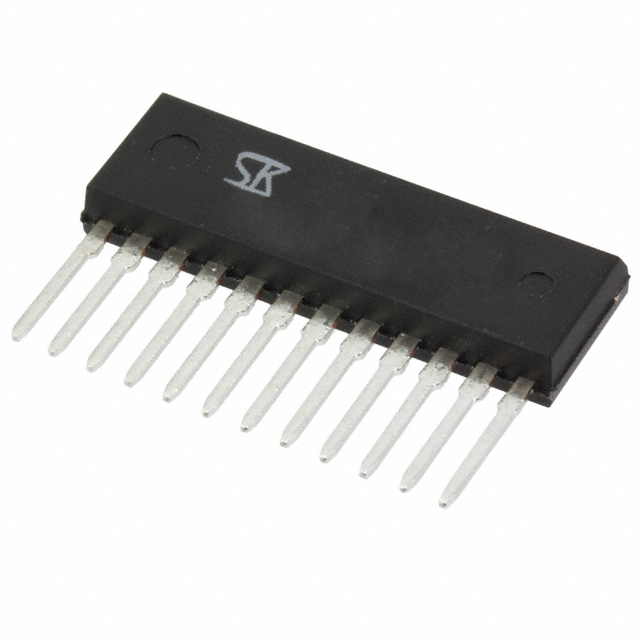

SMA4032
ActiveSanken Electric USA Inc.
TRANS 4NPN DARL 100V 3A 12SIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMA4032
ActiveSanken Electric USA Inc.
TRANS 4NPN DARL 100V 3A 12SIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA4032 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 3 A |
| Current - Collector Cutoff (Max) [Max] | 10 µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 2000 hFE |
| Frequency - Transition | 40 MHz |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |
| Package / Case | 12-SIP |
| Power - Max [Max] | 4 W |
| Supplier Device Package | 12-SIP |
| Transistor Type | 4 NPN Darlington (Quad) |
| Vce Saturation (Max) @ Ib, Ic | 1.5 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 100 V |
SMA40 Series
| Part | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Power - Max [Max] | Current - Collector (Ic) (Max) [Max] | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) [Max] | Package / Case | Transistor Type | Frequency - Transition | Voltage - Collector Emitter Breakdown (Max) | Mounting Type | Operating Temperature | Supplier Device Package | DC Current Gain (hFE) (Min) @ Ic, Vce | Voltage - Collector Emitter Breakdown (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanken Electric USA Inc. | 2000 | 4 W | 2 A | 1.5 V | 10 µA | 15-SIP Exposed Tab Formed Leads | 6 NPN Darlington | 50 MHz | 120 V | Through Hole | 150 °C | 15-SIP | ||
Sanken Electric USA Inc. | 4 W | 3 A | 1.5 V | 10 µA | 12-SIP | 4 PNP Darlington (Quad) | Through Hole | 150 °C | 12-SIP | 2000 hFE | 60 V | |||
Sanken Electric USA Inc. | 2000 hFE | 4 W | 3 A | 1.5 V | 10 µA | 12-SIP | 4 NPN Darlington (Quad) | 40 MHz | Through Hole | 150 °C | 12-SIP | 100 V | ||
Sanken Electric USA Inc. | 2000 hFE | 4 W | 3 A | 1.5 V | 10 µA | 12-SIP | 4 NPN Darlington (Quad) | 40 MHz | Through Hole | 150 °C | 12-SIP | 100 V | ||
Sanken Electric USA Inc. | 2000 hFE | 4 W | 3 A | 1.5 V | 10 µA | 15-SIP Exposed Tab Formed Leads | 6 NPN Darlington | 120 V | Through Hole | 150 °C | 15-SIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.29 | |
| 10 | $ 2.77 | |||
| 180 | $ 2.24 | |||
| 540 | $ 2.19 | |||
Description
General part information
SMA40 Series
Bipolar (BJT) Transistor Array 4 NPN Darlington (Quad) 100V 3A 40MHz 4W Through Hole 12-SIP
