6792122331F

Active

DIALIGHT

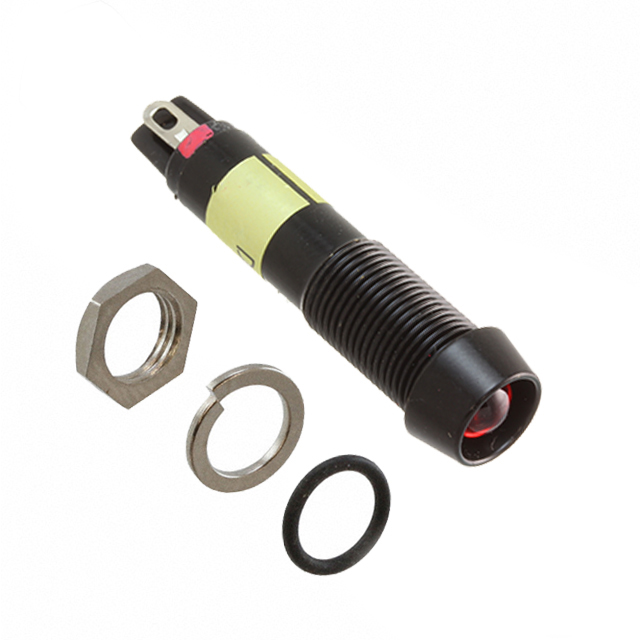

LED PANEL MOUNT INDICATOR UNI-COLOR RED 2100MCD 2-PIN

Search across all available documentation for this part.

Active

DIALIGHT

LED PANEL MOUNT INDICATOR UNI-COLOR RED 2100MCD 2-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red 12V 30mA Solder Lug

Technical documentation and resources

No documents available

Specification	6792122331F	6792122 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Red	Red
Millicandela Rating	775 mcd	775 - 2100 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	12 V	6 - 12 V
Wavelength - Peak	-	624 nm

Part	Voltage	Panel Cutout Shape	Termination Style	Type	Ratings	Millicandela Rating	Lamp Color	Current	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Ingress Protection	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Viewing Angle	Wavelength - Peak
DIALIGHT 6792122331F	12 V	Round	Solder Lug	LED	DC	775 mcd	Red	30 mA	0.37 in	9.4 mm	IP66, NEMA 4X
DIALIGHT 6792122321F	6 V	Round	Solder Lug	LED	DC	2100 mcd	Red	30 mA			IP66, NEMA 4X	0.37 in	9.35 mm	30 °	624 nm
