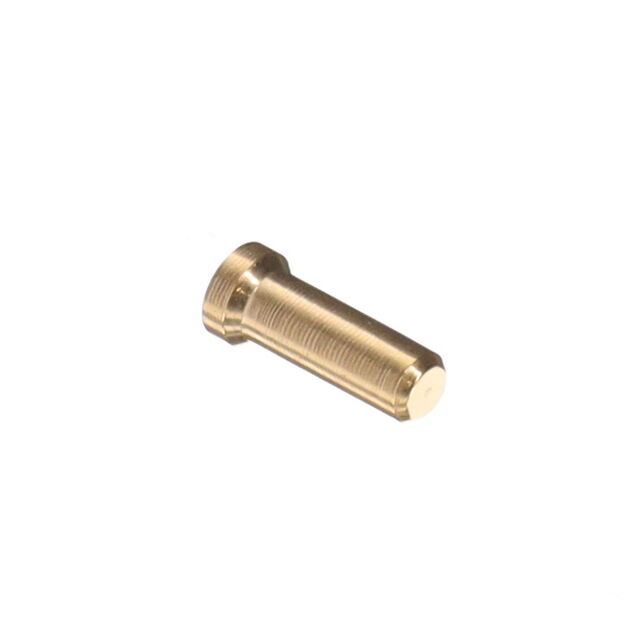

0338-0-15-15-15-14-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

0338-0-15-15-15-14-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0338-0-15-15-15-14-10-0

Accepts Pin Diameter [Max] [diameter]	0.81 mm
Accepts Pin Diameter [Max] [diameter]	0.032 in
Accepts Pin Diameter [Min] [diameter]	0.02 "
Accepts Pin Diameter [Min] [diameter]	0.51 mm
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.17 in
Length - Overall [x]	4.32 mm
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.19 mm
Pin Hole Diameter [diameter]	0.047 "
Socket Depth	0.147 in
Socket Depth	3.73 mm
Tail Type	No Tail
Termination	Solder

0338-0 Series

Part	Contact Material	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Socket Depth	Socket Depth	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0338-0-15-80-15-27-10-0	Beryllium Copper	0.81 mm	0.02 "	0.032 in	0.51 mm	1.19 mm	0.047 "	0.76 Ám	30 Áin	No Tail	0.147 in	3.73 mm	-55 °C	125 °C	0.17 in	4.32 mm	Solder	Gold	0.057 "	1.45 mm	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 0338-0-15-01-15-14-10-0	Beryllium Copper	0.81 mm	0.02 "	0.032 in	0.51 mm	1.19 mm	0.047 "	0.25 Ám	10 Áin	No Tail	0.147 in	3.73 mm	-55 °C	125 °C	0.17 in	4.32 mm	Solder	Gold	0.057 "	1.45 mm	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 0338-0-15-01-15-01-10-0	Beryllium Copper	0.81 mm	0.02 "	0.032 in	0.51 mm	1.19 mm	0.047 "	5.08 Ám	200 Áin	No Tail	0.147 in	3.73 mm	-55 °C	125 °C	0.17 in	4.32 mm	Solder	Tin-Lead	0.057 "	1.45 mm	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 0338-0-15-15-15-27-10-0	Beryllium Copper	0.81 mm	0.02 "	0.032 in	0.51 mm	1.19 mm	0.047 "	0.76 Ám	30 Áin	No Tail	0.147 in	3.73 mm	-55 °C	125 °C	0.17 in	4.32 mm	Solder	Gold	0.057 "	1.45 mm	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 0338-0-15-80-15-80-10-0	Beryllium Copper	0.81 mm	0.02 "	0.032 in	0.51 mm	1.19 mm	0.047 "	5.08 Ám	200 Áin	No Tail	0.147 in	3.73 mm	-55 °C	125 °C	0.17 in	4.32 mm	Solder	Tin	0.057 "	1.45 mm	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 0338-0-15-15-15-14-10-0	Beryllium Copper	0.81 mm	0.02 "	0.032 in	0.51 mm	1.19 mm	0.047 "	0.25 Ám	10 Áin	No Tail	0.147 in	3.73 mm	-55 °C	125 °C	0.17 in	4.32 mm	Solder	Gold	0.057 "	1.45 mm	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 0338-0-15-01-15-27-10-0	Beryllium Copper	0.81 mm	0.02 "	0.032 in	0.51 mm	1.19 mm	0.047 "	0.76 Ám	30 Áin	No Tail	0.147 in	3.73 mm	-55 °C	125 °C	0.17 in	4.32 mm	Solder	Gold	0.057 "	1.45 mm	1.83 mm	0.072 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.41
		10	$ 1.19
		25	$ 1.14
		50	$ 1.12
		100	$ 1.07
		250	$ 0.97
		500	$ 0.88
		1000	$ 0.78
		3000	$ 0.71

Description

General part information

0338-0 Series

Pin Receptacle Connector 0.020" ~ 0.032" (0.51mm ~ 0.81mm) No Tail Solder

Documents

Technical documentation and resources

No documents available
