77603W 010100

Active

Belden Inc.

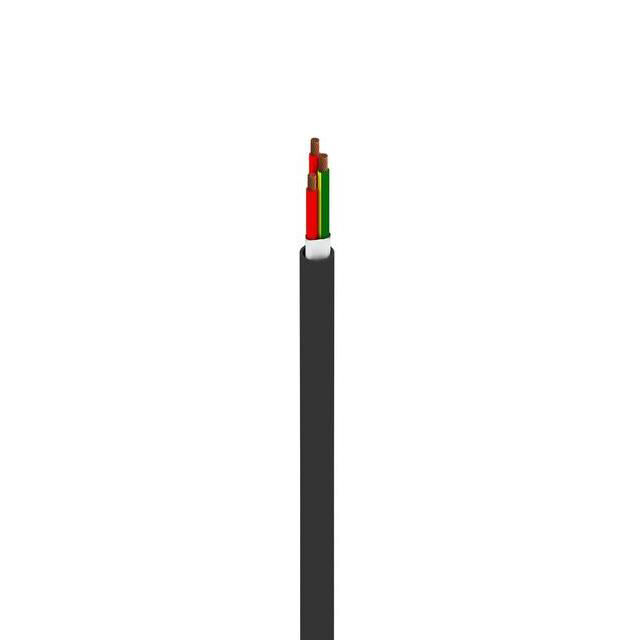

CABLE 3COND 16AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 16AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	77603W 010100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	168
Conductor Strand [custom]	38 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.331 in
Jacket (Insulation) Diameter [diameter]	8.41 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-5 °C
Ratings	UL Style 2587
Wire Gauge	16 AWG

Part	Conductor Insulation	Ratings	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors
Belden Inc. 77603W 010100	Poly-Vinyl Chloride (PVC)	UL Style 2587	16 AWG	30.5 m	100 ft	0.889 mm	0.035 in	Multi-Conductor	90 °C	-5 °C	Copper Bare	168	38 AWG	Oil Resistant	Poly-Vinyl Chloride (PVC)	Black	0.331 in	8.41 mm	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 3.40

General part information

3 Conductor Multi-Conductor Cable Black 16 AWG 100.0' (30.5m)
