DC3332207S

Active

SAB North America

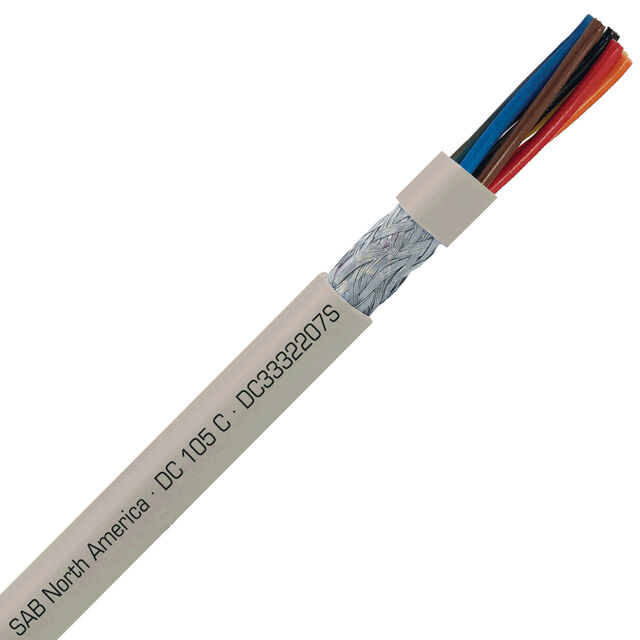

CABLE 7COND 22AWG GRY SHLD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 7COND 22AWG GRY SHLD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332207S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

CABLE 7COND 22AWG GRY SHLD 1=1FT

Part	Wire Gauge	Conductor Material	Jacket Color	Shield Type	Length	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Number of Conductors	Conductor Insulation	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Features	Voltage
SAB North America DC3332207S	22 AWG	Copper, Tinned	Gray	Braid, Foil	Enter Number of Feet in Order Quantity	Poly-Vinyl Chloride (PVC)	-25 °C	105 ░C	Multi-Conductor	7	Poly-Vinyl Chloride (PVC)	Aluminum, Copper, Tinned	7	30 AWG	Drain Wire	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Conductor Multi-Conductor Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
