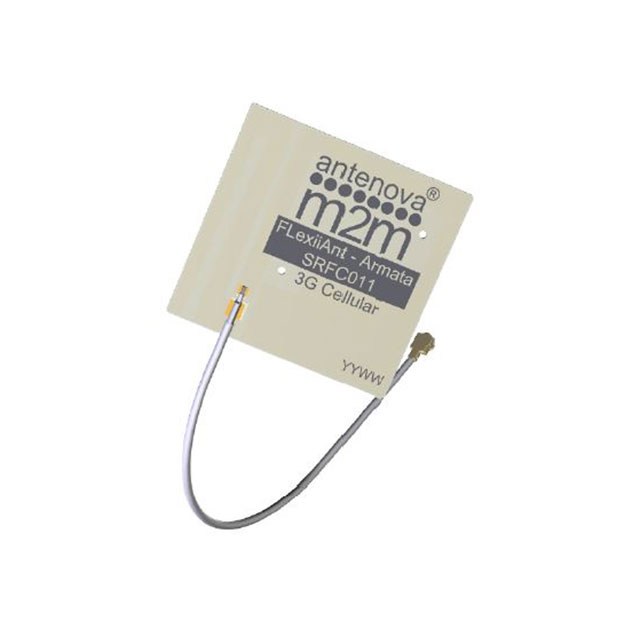

SRFC011-150

Active

Antenova

RF ANT 892MHZ/1.9GHZ FLAT PATCH

Search across all available documentation for this part.

Active

Antenova

RF ANT 892MHZ/1.9GHZ FLAT PATCH

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 892MHZ/1.9GHZ FLAT PATCH

Part	Frequency Range [Min]	Frequency Range [Max]	Applications	Height (Max)	Height (Max) [Max]	Antenna Type	Termination	Frequency (Center/Band)	Mounting Type	Gain	Number of Bands	RF Family/Standard	Return Loss	VSWR
Antenova SRFC011-150	1.71 GHz, 824 MHz	2.17 GHz, 960 MHz	GSM, WCDMA	0.15 mm	0.006 in	Flat Patch	IPEX MHF1, U.FL (UMCC)	1.9 GHz, 892 MHz	Adhesive	4 dBi	2	Cellular	-12 dB	2.2
Antenova SRFC011-100	1.71 GHz, 824 MHz	2.17 GHz, 960 MHz	GSM, WCDMA	0.15 mm	0.006 in	Flat Patch	IPEX MHF1, U.FL (UMCC)	1.9 GHz, 892 MHz	Adhesive	4 dBi	2	Cellular	-12 dB	2.2
Antenova SRFC011-200	1.71 GHz, 824 MHz	2.17 GHz, 960 MHz	GSM, WCDMA	0.15 mm	0.006 in	Flat Patch	IPEX MHF1, U.FL (UMCC)	1.9 GHz, 892 MHz	Adhesive	4 dBi	2	Cellular	-12 dB	2.2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GSM, WCDMA Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
