9003-1213-002

Active

Radiall USA, Inc.

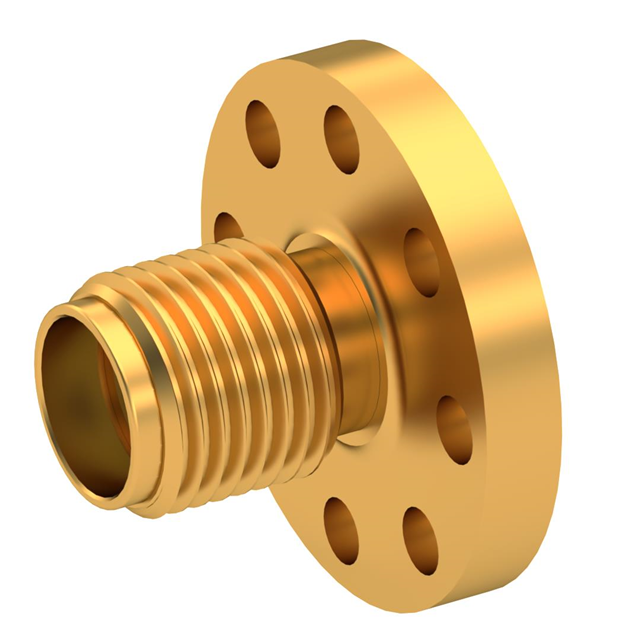

SMA / STRAIGHT JACK RECEPTACLE F

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK RECEPTACLE F

Technical Specifications

Parameters and characteristics for this part

Specification	9003-1213-002

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw

Part	Mating Cycles	Housing Color	Center Contact Material	Impedance	Connector Type	Mounting Feature	Frequency - Max [Max]	Center Contact Plating	Body Finish	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Shield Termination	Dielectric Material	Connector Style	Number of Ports
Radiall USA, Inc. 9003-1213-003	500	Gold	Beryllium Copper	50 Ohms	Female Socket Jack	Flange	18 GHz	Gold	Gold	Solder	-65 ░C	165 °C	Stainless Steel	Screw	Polytetrafluoroethylene (PTFE)	SMA	1
Radiall USA, Inc. 9003-1213-002	500	Gold	Beryllium Copper	50 Ohms	Female Socket Jack	Flange	18 GHz	Gold	Gold	Solder	-65 ░C	165 °C	Stainless Steel	Screw	Polytetrafluoroethylene (PTFE)	SMA	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 27.07

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
