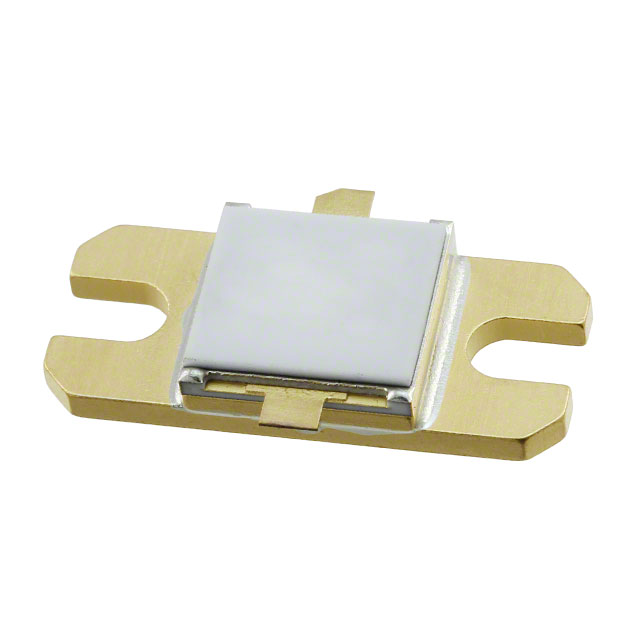

PH3135-5S

Active

MACOM Technology Solutions

RF TRANS NPN 60V

Search across all available documentation for this part.

Active

MACOM Technology Solutions

RF TRANS NPN 60V

Technical Specifications

Parameters and characteristics for this part

Specification	PH3135-5S

Current - Collector (Ic) (Max) [Max]	750 mA
Gain	8.5 dBi
Operating Temperature	200 °C
Power - Max [Max]	5 W
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	60 V

Part	Gain	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature	Transistor Type	Current - Collector (Ic) (Max) [Max]
MACOM Technology Solutions PH3135-5S	8.5 dBi	5 W	60 V	200 °C	NPN	750 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 326.56

General part information

RF Transistor NPN 60V 750mA 5W
