FLA.0S.250.CTAK57

Active

LEMO

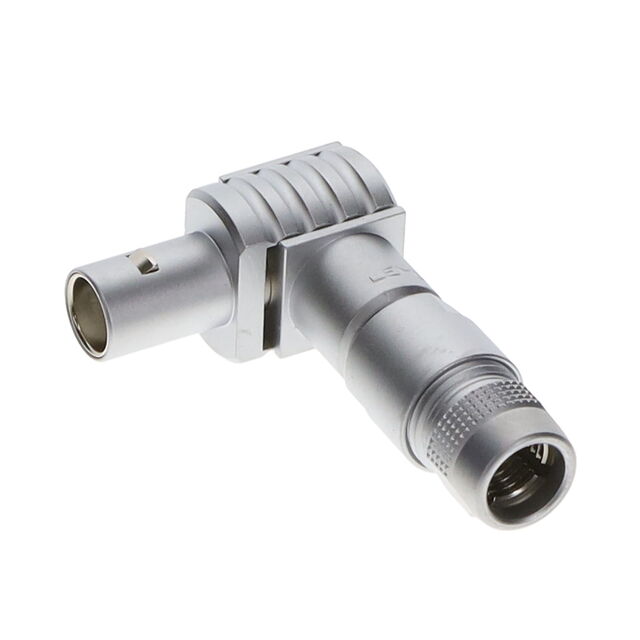

CONN COAX PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

FLA.0S.250.CTAK57

Active

LEMO

CONN COAX PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FLA.0S.250.CTAK57	FLA.0S Series

Accessory Type	-	Collet
Backshell Material, Plating	-	Brass, Chrome
Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	174A, 188A, 196A, 316B, 178B, RG-122, 174	174A, 188A, 196A, 316B, 178B, RG-122, 174
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Cable Opening	-	2.2 - 3.2 mm
Cable Opening	-	0.087 - 0.126 in
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Color	-	Silver
Connector Style	Coaxial	Coaxial
Connector Type	Male Pin, Plug	Male Pin, Plug, Male Pins, Female Sockets
Contact Finish - Mating	-	Gold
Contact Material	-	Bronze, Brass
Contact Termination	Solder	Solder
Current Rating (Amps)	-	7 - 10 A
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	-	Backshell
For Use With/Related Products	-	0S Series Connector
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	1000	1000
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Number of Positions	-	2 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	302 - 304
Shield Termination	Clamp	Clamp
Shielding	-	Shielded

FLA.0S Series

CONN COLLET FLA.0S. - 2.7MM DIA

Part	Accessory Type	For Use With/Related Products	Fastening Type	Connector Type	Center Contact Material	Impedance	Cable Group	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Body Finish	Contact Termination	Connector Style	Body Material	Shield Termination	Housing Color	Center Contact Plating	Dielectric Material	Number of Ports	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Orientation	Shell Material	Contact Finish - Mating	Shell Finish	Shielding	Color	Shell Size - Insert	Number of Positions	Backshell Material, Plating	Current Rating (Amps)	Features	Primary Material	Contact Material	Material Flammability Rating	Insert Material
LEMO FLA.0S.727.CN	Collet	0S Series Connector
LEMO FLA.0S.250.CTAK52			Push-Pull	Male Pin, Plug	Brass	50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122	1000	-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle	Chrome	Solder	Coaxial	Brass	Clamp	Silver	Gold	Polytetrafluoroethylene (PTFE)
LEMO FLA.0S.744.CN	Collet	0S Series Connector
LEMO FLA.0S.250.CTAC42			Push-Pull	Male Pin, Plug	Brass	50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122	1000	-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle	Chrome	Solder	Coaxial	Brass	Clamp	Silver	Gold	Polytetrafluoroethylene (PTFE)	1
LEMO FLA.0S.742.CN	Collet	0S Series Connector
LEMO FLA.0S.302.CLAC42			Push-Pull	Female Sockets, Male Pins, Plug					-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle										0.126 in	4.2 mm	0.165 in	3.2 mm	Keyed	Brass	Gold	Chrome	Shielded	Silver	302	2	Brass, Chrome	10 A	Backshell	Metal	Brass, Bronze	UL94 V-0	Polyetheretherketone (PEEK)
LEMO FLA.0S.737.CN	Collet	0S Series Connector
LEMO FLA.0S.250.ZTA			Push-Pull	Male Pin, Plug	Brass	50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122	1000	-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle		Solder	Coaxial				Gold	Polytetrafluoroethylene (PTFE)	1
LEMO FLA.0S.302.CLAZ			Push-Pull	Female Sockets, Male Pins, Plug					-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle														Keyed	Brass	Gold	Chrome	Shielded	Silver	302	2	Brass, Chrome	10 A	Backshell	Metal	Brass, Bronze	UL94 V-0	Polyetheretherketone (PEEK)
LEMO FLA.0S.250.CTAK57			Push-Pull	Male Pin, Plug	Brass	50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122	1000	-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle	Chrome	Solder	Coaxial	Brass	Clamp	Silver	Gold	Polytetrafluoroethylene (PTFE)	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.47
		10	$ 45.39
		25	$ 43.65
		50	$ 42.19
		100	$ 39.86
		250	$ 38.70

Description

General part information

FLA.0S Series

Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
