FLA.0S.302.CLAC42

Active

LEMO

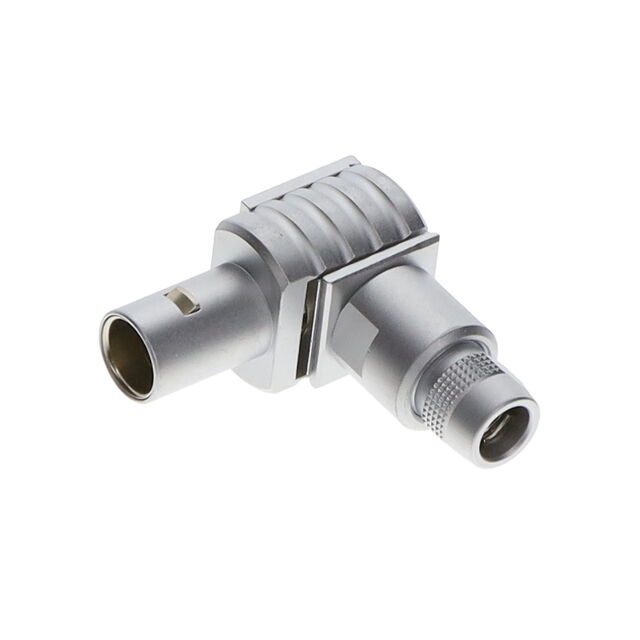

CONN CIRC PLUG 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FLA.0S.302.CLAC42

Active

LEMO

CONN CIRC PLUG 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.16
		10	$ 51.54
		25	$ 49.56
		50	$ 47.90
		100	$ 45.26

Description

General part information

FLA.0S Series

2 Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FLA.0S.302.CLAC42	FLA.0S Series

Accessory Type	-	Collet
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	174A, 188A, 196A, 316B, 178B, RG-122, 174
Cable Opening	-	2.2 - 3.2 mm
Cable Opening	-	0.087 - 0.126 in
Cable Opening [Max] [custom]	4.2 mm	4.2 mm
Cable Opening [Max] [custom]	0.165 in	0.165 in
Cable Opening [Min] [custom]	0.126 in	0.126 in
Cable Opening [Min] [custom]	3.2 mm	3.2 mm
Center Contact Material	-	Brass
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial
Connector Type	Male Pins, Plug, Female Sockets	Male Pin, Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder
Current Rating (Amps)	10 A	7 - 10 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
For Use With/Related Products	-	0S Series Connector
Housing Color	-	Silver
Impedance	-	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	-	1
Number of Positions	2	2 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 304
Shield Termination	-	Clamp
Shielding	Shielded	Shielded

FLA.0S Series

CONN COLLET FLA.0S. - 2.7MM DIA

Part	Accessory Type	For Use With/Related Products	Fastening Type	Connector Type	Center Contact Material	Impedance	Cable Group	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Body Finish	Contact Termination	Connector Style	Body Material	Shield Termination	Housing Color	Center Contact Plating	Dielectric Material	Number of Ports	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Orientation	Shell Material	Contact Finish - Mating	Shell Finish	Shielding	Color	Shell Size - Insert	Number of Positions	Backshell Material, Plating	Current Rating (Amps)	Features	Primary Material	Contact Material	Material Flammability Rating	Insert Material
LEMO FLA.0S.727.CN	Collet	0S Series Connector
LEMO FLA.0S.250.CTAK52			Push-Pull	Male Pin, Plug	Brass	50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122	1000	-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle	Chrome	Solder	Coaxial	Brass	Clamp	Silver	Gold	Polytetrafluoroethylene (PTFE)
LEMO FLA.0S.744.CN	Collet	0S Series Connector
LEMO FLA.0S.250.CTAC42			Push-Pull	Male Pin, Plug	Brass	50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122	1000	-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle	Chrome	Solder	Coaxial	Brass	Clamp	Silver	Gold	Polytetrafluoroethylene (PTFE)	1
LEMO FLA.0S.742.CN	Collet	0S Series Connector
LEMO FLA.0S.302.CLAC42			Push-Pull	Female Sockets, Male Pins, Plug					-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle										0.126 in	4.2 mm	0.165 in	3.2 mm	Keyed	Brass	Gold	Chrome	Shielded	Silver	302	2	Brass, Chrome	10 A	Backshell	Metal	Brass, Bronze	UL94 V-0	Polyetheretherketone (PEEK)
LEMO FLA.0S.737.CN	Collet	0S Series Connector
LEMO FLA.0S.250.ZTA			Push-Pull	Male Pin, Plug	Brass	50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122	1000	-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle		Solder	Coaxial				Gold	Polytetrafluoroethylene (PTFE)	1
LEMO FLA.0S.302.CLAZ			Push-Pull	Female Sockets, Male Pins, Plug					-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle														Keyed	Brass	Gold	Chrome	Shielded	Silver	302	2	Brass, Chrome	10 A	Backshell	Metal	Brass, Bronze	UL94 V-0	Polyetheretherketone (PEEK)
LEMO FLA.0S.250.CTAK57			Push-Pull	Male Pin, Plug	Brass	50 Ohms	174, 174A, 178B, 188A, 196A, 316B, RG-122	1000	-55 °C	250 °C	IP50	Free Hanging (In-Line), Right Angle	Chrome	Solder	Coaxial	Brass	Clamp	Silver	Gold	Polytetrafluoroethylene (PTFE)	1
