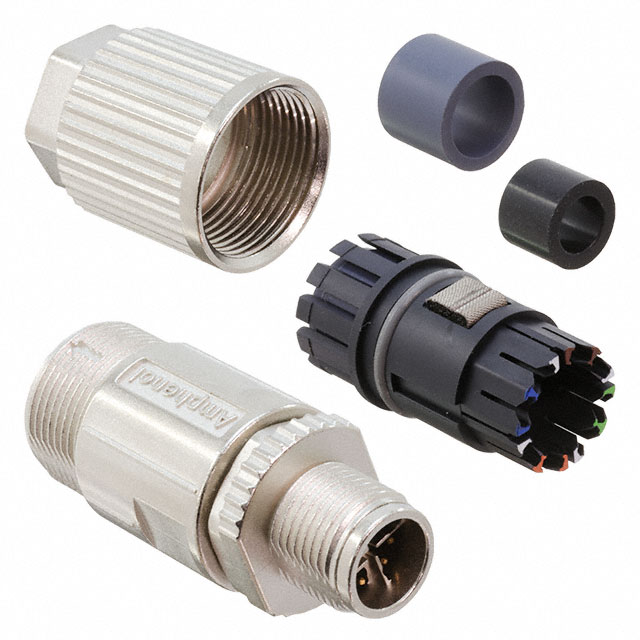

MSXS-08BMMD-SL8001
ActiveAmphenol LTW
CONN PLUG MALE 8POS GOLD IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSXS-08BMMD-SL8001
ActiveAmphenol LTW
CONN PLUG MALE 8POS GOLD IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSXS-08BMMD-SL8001 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [custom] | 0.354 in |
| Cable Opening [Max] [custom] | 9 mm |
| Cable Opening [Min] [custom] | 5 mm |
| Cable Opening [Min] [custom] | 0.197 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | X |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 50 VAC, 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 37.48 | |
| 10 | $ 28.96 | |||
| 25 | $ 26.26 | |||
| 50 | $ 24.44 | |||
| 100 | $ 22.78 | |||
| 250 | $ 20.84 | |||
| 500 | $ 19.54 | |||
Description
General part information
MSXS-08BMMD Series
8 Position Circular Connector Plug, Male Pins IDC
