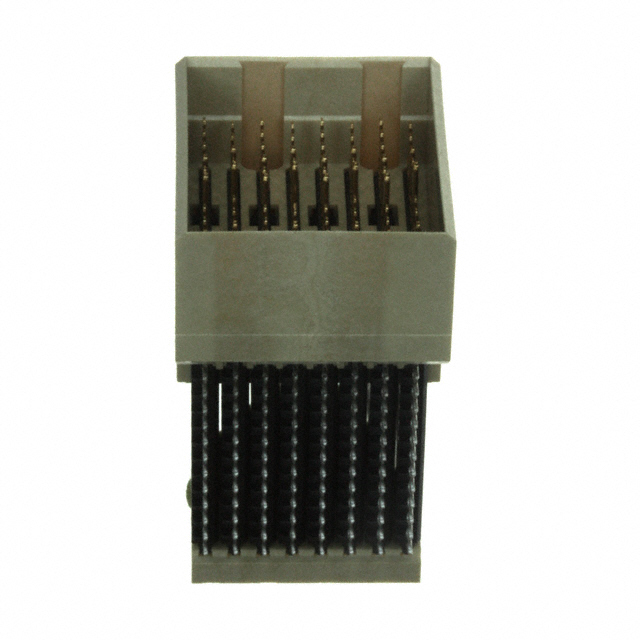

10084604-111LF

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 96POS EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 96POS EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10084604-111LF

Color	Natural
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	8
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	12
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Number of Positions	Connector Usage	Pitch [x]	Pitch [x]	Mounting Type	Connector Style	Features	Connector Type	Number of Positions Loaded	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Color	Number of Columns	Number of Rows
Amphenol ICC (FCI) 10084604-101LF	96	Daughtercard	0.079 in	2 mm	Board Edge Right Angle Through Hole	High Speed	Spacer	Header Male Pins	All	Press-Fit	85 °C	-55 °C	UL94 V-0	Natural	8	12
Amphenol ICC (FCI) 10084604-111LF	96	Daughtercard	0.055 in	1.4 mm	Board Edge Right Angle Through Hole	High Speed		Header Male Pins	All	Press-Fit			UL94 V-0	Natural	8	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

96 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural High Speed
