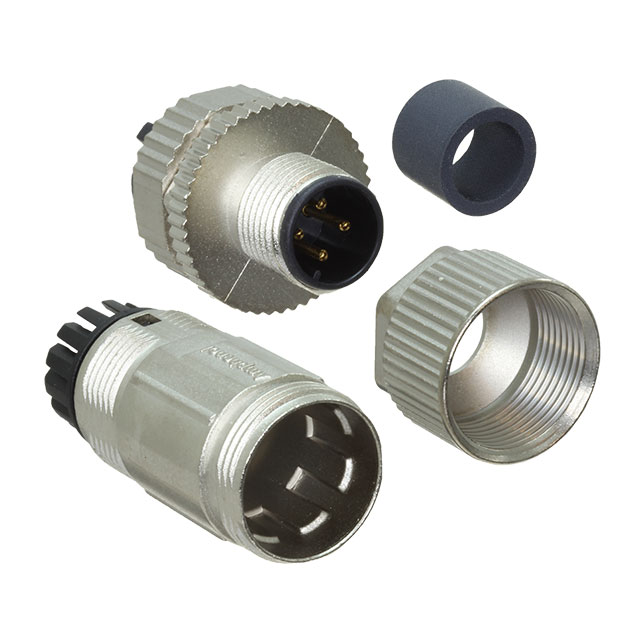

MSDS-04BMMB-SL7001
ActiveAmphenol LTW
M12 CONN SCREW IN 180
Deep-Dive with AI
Search across all available documentation for this part.
MSDS-04BMMB-SL7001
ActiveAmphenol LTW
M12 CONN SCREW IN 180
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSDS-04BMMB-SL7001 |
|---|---|
| Backshell Material, Plating | Nickel, Zinc Alloy |
| Cable Opening [Max] [custom] | 0.295 in |
| Cable Opening [Max] [custom] | 7.5 mm |
| Cable Opening [Min] [custom] | 4 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | D |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Screw |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.64 | |
| 10 | $ 13.87 | |||
| 30 | $ 13.33 | |||
| 50 | $ 12.80 | |||
| 100 | $ 12.09 | |||
| 250 | $ 11.02 | |||
| 500 | $ 10.31 | |||
| 1000 | $ 9.46 | |||
Description
General part information
MSDS-04BMMB Series
4 Position Circular Connector Receptacle, Male Pins Screw
